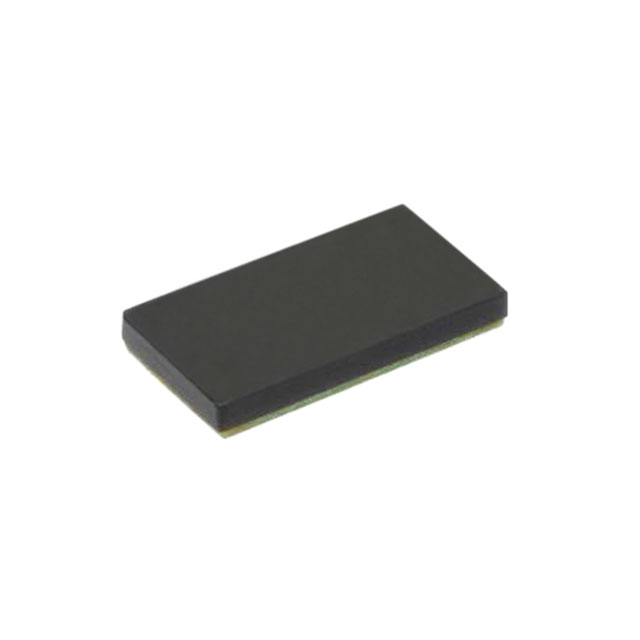

ULVT012A0X3-SRZ

Obsolete

OmniOn Power™

DC DC CONVERTER 0.6-5.5V 66W

Search across all available documentation for this part.

Obsolete

OmniOn Power™

DC DC CONVERTER 0.6-5.5V 66W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.6-5.5V 66W

Part	Applications	Package / Case	Number of Outputs	Control Features	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
OmniOn Power™ ULVT012A0X3-SRZ	ITE (Commercial)	16-SMD Module	1	Active Low, Enable	Non-Isolated PoL Module	5.5 V	0.6 V	OCP, OTP, Remote On/Off, SCP, UVLO	12 A	3 V	14.4 V	11.4 mm	0.45 in	3 mm	0.12 in	20.3 mm	0.8 "	92 %	-40 °C	105 ░C	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 12A 3V - 14.4V Input
