83003 005100

Active

Belden Inc.

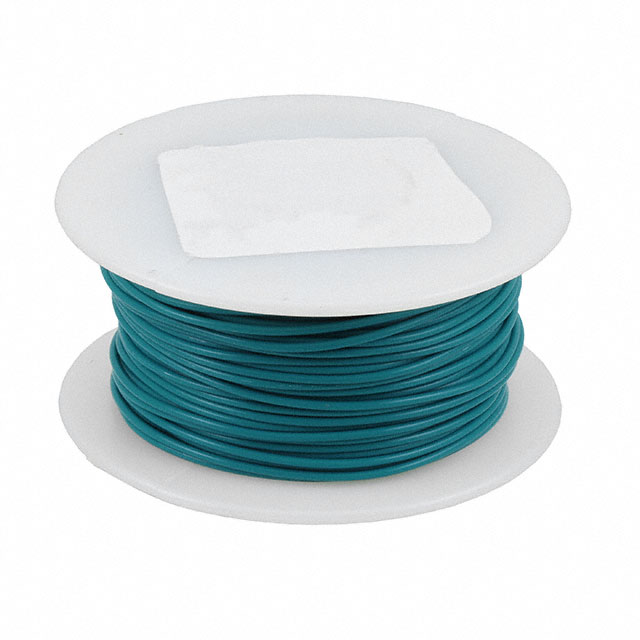

WIRE, HOOK UP, HI TEMP, PTFE, GREEN, 24 AWG, 100 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial Applications Datasheet +1

83003 005100

Active

Belden Inc.

WIRE, HOOK UP, HI TEMP, PTFE, GREEN, 24 AWG, 100 FT

Deep-Dive with AI

DocumentsCabling Solutions for Industrial Applications Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83003 005100

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Features	High Temperature
Jacket (Insulation) Diameter [diameter]	1.12 mm
Jacket (Insulation) Diameter [diameter]	0.044 in
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Green
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Qualification	MIL-W-16878/4
Ratings	UL Style 1213
Voltage	600 V
Wire Gauge	24 AWG

83003 Series

Part	Length	Length	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Features	Voltage	Wire Gauge	Ratings	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Qualification	Length [x]	Length [x]
Belden Inc. 83003 0061000	1000 ft	304.8 m	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	Blue	200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4
Belden Inc. 83003 003100			Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	Orange	200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4	30.5 m	100 ft
Belden Inc. 83003 0071000	1000 ft	304.8 m	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	Violet	200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4
Belden Inc. 83003 0101000	1000 ft	304.8 m	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	Black	200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4
Belden Inc. 83003 009500			Tetrafluoroethylene (TFE)	1.12 mm	0.044 in		200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4	152.4 m	500 '
Belden Inc. 83003 005100			Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	Green	200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4	30.5 m	100 ft
Belden Inc. 83003 0021000	1000 ft	304.8 m	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	Red	200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4
Belden Inc. 83003 0091000	1000 ft	304.8 m	Tetrafluoroethylene (TFE)	1.12 mm	0.044 in		200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4
Belden Inc. 83003 007100			Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	Violet	200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4	30.5 m	100 ft
Belden Inc. 83003 010500			Tetrafluoroethylene (TFE)	1.12 mm	0.044 in	Black	200 °C	-70 °C	Copper Silver Coated	High Temperature	600 V	24 AWG	UL Style 1213	Hook-Up	0.25 mm	0.01 in	MIL-W-16878/4	152.4 m	500 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 152.10
		2	$ 144.71
		3	$ 140.53
		5	$ 135.41
		7	$ 132.12
		10	$ 128.70
		25	$ 120.25
		50	$ 114.16

Description

General part information

83003 Series

The 83003 005100 is a 30.48m green Hook-up/Lead Wire with stranded silver-coated copper conductor and PTFE jacket insulation.
