6803132131F

Active

DIALIGHT

10MM HR/R PMI-12VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HR/R PMI-12VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6803132131F	6803132 Series

Current	30 mA	30 mA
Lamp Color	Red	Red
Millicandela Rating	1530 mcd	335 - 2100 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.4 mm
Panel Cutout Dimensions [diameter]	0.41 in	0.41 in
Panel Cutout Dimensions [diameter]	10.41 mm	10.41 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	12 V	6 - 24 V
Wavelength - Peak	-	624 nm

10MM HR/R PMI-6VDC

Part	Millicandela Rating	Panel Cutout Shape	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Ratings	Termination Style	Lamp Color	Type	Voltage	Current	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Viewing Angle	Wavelength - Peak
DIALIGHT 6803132221F	335 mcd	Round	0.37 in	9.4 mm	DC	Solder Lug	Red	LED	6 V	30 mA
DIALIGHT 6803132131F	1530 mcd	Round			DC	Solder Lug	Red	LED	12 V	30 mA	0.41 in	10.41 mm
DIALIGHT 6803132231F	335 mcd	Round	0.37 in	9.4 mm	DC	Solder Lug	Red	LED	12 V	30 mA
DIALIGHT 6803132141F	2100 mcd				DC	Solder Lug	Red	LED	24 V	30 mA			30 °	624 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

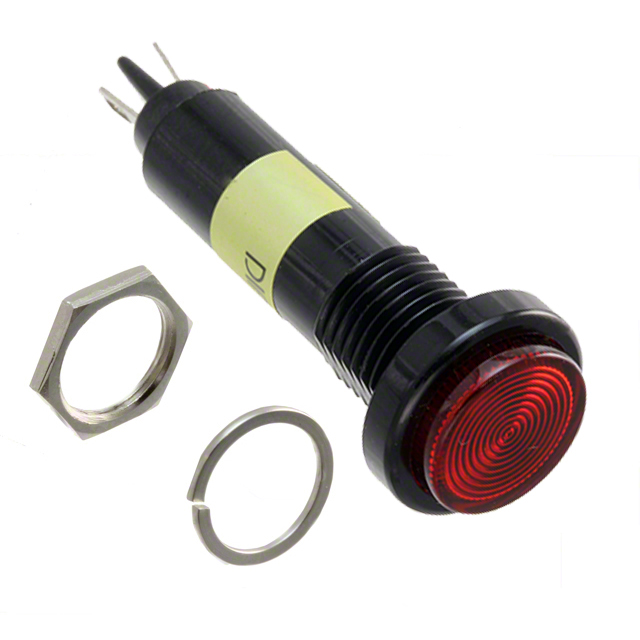

LED Panel Indicator Red 12V 30mA Solder Lug
