PES1-S12-S3-M-TR

Obsolete

CUI Inc.

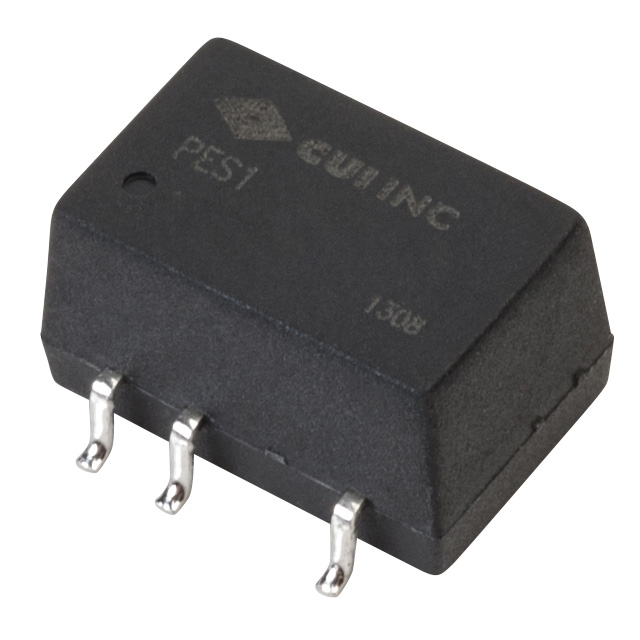

MODULE DC-DC 12VIN 1-OUT 3.3V 0.303A 1W 5-PIN T/R

PES1-S12-S3-M-TR

Obsolete

CUI Inc.

MODULE DC-DC 12VIN 1-OUT 3.3V 0.303A 1W 5-PIN T/R

Description Specifications Series Pricing CAD Documents

Description

General part information

PES1-S12 Series

Isolated Module DC DC Converter 1 Output 3.3V 303mA 10.8V - 13.2V Input

Technical Specifications

Parameters and characteristics for this part

Specification	PES1-S12-S3-M-TR

Applications	ITE (Commercial)
Approval Agency	UL, EN
Current - Output (Max)	303 mA
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Leads
Package Name	8-SMD Module
Power (Watts)	1 W
Size / Dimension Height	0.29 in
Size / Dimension Length	0.5 in
Size / Dimension Width	0.33 in
Standard Number	55032 Class A, 60950-1, 55024
Type	Isolated Module
Voltage - Input (Max)	13.2 V
Voltage - Input (Min)	10.8 V
Voltage - Isolation	3 kV
Voltage - Output 1	3.3 V

PES1-S12 Series

Part	Features	Applications	Voltage - Input (Min)	Voltage - Isolation	Approval Agency	Efficiency	Standard Number	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Output 1	Mounting Type	Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Leads	Package Name	Power (Watts)	Voltage - Input (Max)	Current - Output (Max)	Number of Outputs	Voltage - Output 2	Current - Output (Max) Options
CUI Inc. PES1-S12-S15-M-TR	SCP	ITE (Commercial)	10.8 V	3 kV	EN UL	80 %	55024 55032 Class A 60950-1	0.32 in	0.5 in	0.29 in	15 V	Surface Mount	Isolated Module	105 °C	-40 °C	5 Leads	8-SMD Module	1 W	13.2 V	67 mA	1
CUI Inc. PES1-S12-S5-M-TR	SCP	ITE (Commercial)	10.8 V	3 kV	EN UL	80 %	55024 55032 Class A 60950-1	0.32 in	0.5 in	0.29 in	5 V	Surface Mount	Isolated Module	105 °C	-40 °C	5 Leads	8-SMD Module	1 W	13.2 V	200 mA	1
CUI Inc. PES1-S12-S15-M	SCP	ITE (Commercial)	10.8 V	3 kV	EN UL	80 %	55024 55032 Class A 60950-1	0.32 in	0.5 in	0.29 in	15 V	Surface Mount	Isolated Module	105 °C	-40 °C	5 Leads	8-SMD Module	1 W	13.2 V	67 mA	1
CUI Inc. PES1-S12-D24-M-TR	SCP	ITE (Commercial)	10.8 V	3 kV	CB Scheme EN IEC UL	81 %	55024 55032 Class A 60950-1	0.33 in	0.6 in	0.29 in	24 V	Surface Mount	Isolated Module	105 °C	-40 °C	6 Leads	8-SMD Module	1 W	13.2 V	21 mA	2	-24 V
CUI Inc. PES1-S12-D5-M	SCP	ITE (Commercial)	10.8 V	3 kV	CB Scheme EN IEC	80 %	55024 55032 Class A 60950-1	0.33 in	0.6 in	0.29 in	5 V	Surface Mount	Isolated Module	105 °C	-40 °C	6 Leads	10-SMD Module	1 W	13.2 V		2	-5 V	100mA
CUI Inc. PES1-S12-S3-M-TR	SCP	ITE (Commercial)	10.8 V	3 kV	EN UL		55024 55032 Class A 60950-1	0.33 in	0.5 in	0.29 in	3.3 V	Surface Mount	Isolated Module	105 °C	-40 °C	5 Leads	8-SMD Module	1 W	13.2 V	303 mA	1
CUI Inc. PES1-S12-S12-M	SCP	ITE (Commercial)	10.8 V	3 kV	EN UL	80 %	55024 55032 Class A 60950-1	0.32 in	0.5 in	0.29 in	12 V	Surface Mount	Isolated Module	105 °C	-40 °C	5 Leads	8-SMD Module	1 W	13.2 V	84 mA	1
CUI Inc. PES1-S12-D15-M-TR	SCP	ITE (Commercial)	10.8 V	3 kV	CB Scheme EN IEC UL	81 %	55024 55032 Class A 60950-1	0.33 in	0.5 in	0.29 in	15 V	Surface Mount	Isolated Module	105 °C	-40 °C	6 Leads	8-SMD Module	1 W	13.2 V	33 mA	2	-15 V
CUI Inc. PES1-S12-D12-M-TR	SCP	ITE (Commercial)	10.8 V	3 kV	CB Scheme EN IEC UL	81 %	55024 55032 Class A 60950-1	0.33 in	0.5 in	0.29 in	12 V	Surface Mount	Isolated Module	105 °C	-40 °C	6 Leads	8-SMD Module	1 W	13.2 V	42 mA	2	-12 V
CUI Inc. PES1-S12-D5-M-TR	SCP	ITE (Commercial)	10.8 V	3 kV	CB Scheme EN IEC UL	80 %	55024 55032 Class A 60950-1	0.33 in	0.6 in	0.29 in	5 V	Surface Mount	Isolated Module	105 °C	-40 °C	6 Leads	10-SMD Module	1 W	13.2 V		2	-5 V	100mA
