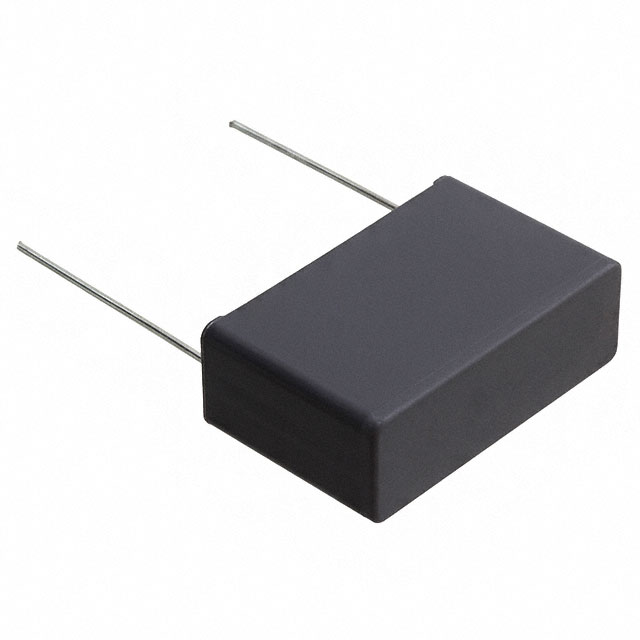

R60MR42205040K

Active

KEMET

CAP FILM 2.2UF 400V PET 10%( 32 X 11 X 20MM) RADIAL WOUND 27.5MM 105°C TRAY

Search across all available documentation for this part.

Active

KEMET

CAP FILM 2.2UF 400V PET 10%( 32 X 11 X 20MM) RADIAL WOUND 27.5MM 105°C TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	R60MR42205040K

Applications	General Purpose
Capacitance	2.2 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	11 mm
Size / Dimension [y]	0.433 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	200 V
Voltage Rating - DC	400 V

Part	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Voltage Rating - AC	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Tolerance	Lead Spacing	Lead Spacing	Voltage Rating - DC
KEMET R60MR51005040K	PC Pins	37.1 mm	1.461 in	10 µF	200 V	Radial	0.866 in	32 mm	22 mm	1.26 in	General Purpose	Through Hole	105 ░C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	10 %	27.5 mm	1.083 in	400 V
KEMET R60MR4100AA30J	PC Pins	17.1 mm	0.673 in	1 µF	200 V	Radial	0.354 in	32 mm	9 mm	1.26 in	Automotive	Through Hole	105 ░C	-55 °C	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	5 %	27.5 mm	1.083 in	400 V
KEMET R60MR42205040K	PC Pins			2.2 µF	200 V	Radial	0.433 in	32 mm	11 mm	1.26 in	General Purpose	Through Hole	105 ░C	-55 °C	Metallized Polyester Polyethylene Terephthalate (PET)	10 %	27.5 mm	1.083 in	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
