ENG.1B.305.CLL

Active

LEMO

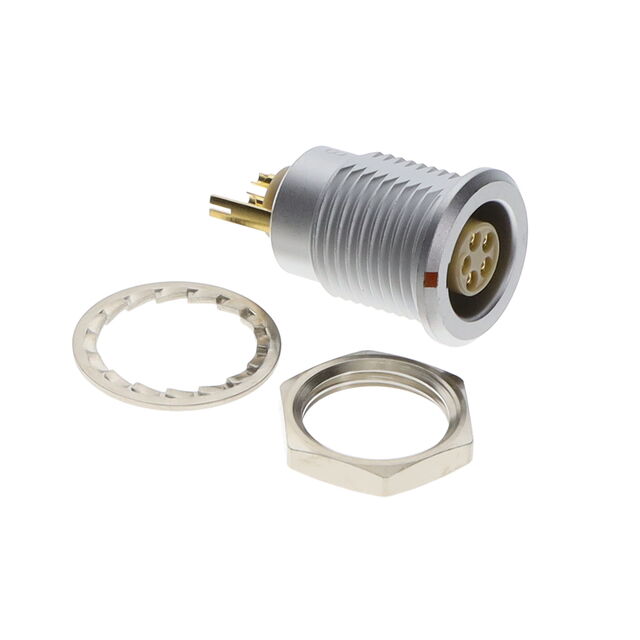

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ENG.1B.305.CLL

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.85
		10	$ 32.27
		25	$ 30.87
		50	$ 29.88
		100	$ 28.88
		250	$ 27.29

Description

General part information

ENG.1B Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ENG.1B.305.CLL	ENG.1B Series

Accessory Type	-	Earthing Crown
Color	Silver	Silver, Beige
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	9 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
For Use With/Related Products	-	1B Series Connector
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	-	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 - -50 °C
Orientation	G	G
Primary Material	Metal	Metal, Plastic
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 316
Shielding	Shielded	Shielded
Termination	-	Crimp

ENG.1B Series

CONN RCPT FMALE 5P GOLD SLDR CUP

Part	Material Flammability Rating	Insert Material	Color	Features	Contact Material	Orientation	Fastening Type	Contact Finish - Mating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Feature	Ingress Protection	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Material	Shell Finish	Shielding	Number of Positions	Termination	Accessory Type	For Use With/Related Products	Number of Positions
LEMO ENG.1B.305.CLL	UL94 V-0	Polyetheretherketone (PEEK)	Silver	Ground	Bronze	G	Push-Pull	Gold	Metal	-55 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	9 A	59 Áin	1.5 Ám	305	Brass	Chrome	Shielded
