7-1393304-1

Active

TE Connectivity AMP Connectors

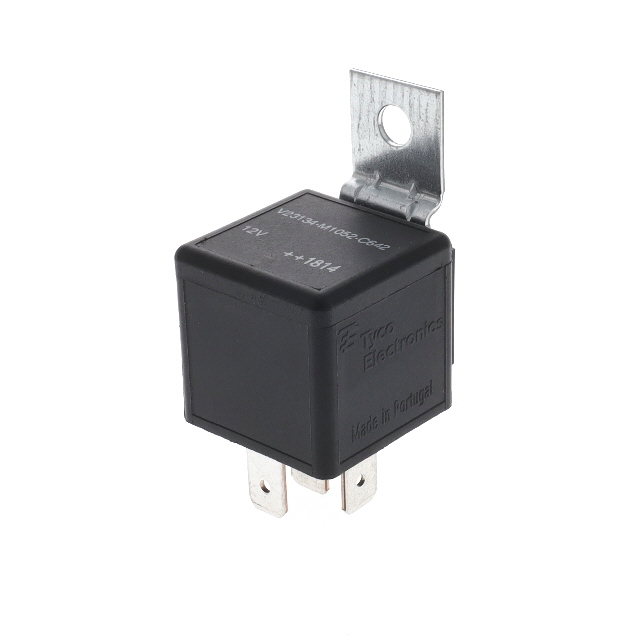

RELAY GEN PURPOSE SPST 25A 12V

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

RELAY GEN PURPOSE SPST 25A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (DM) (1 Form U) 12VDC Coil Chassis Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	7-1393304-1	1393304 Series

Coil Current	133.3 mA	74.1 - 133.3 mA
Coil Resistance	90 Ohms	90 - 324 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	SPST-NO (DM) (1 Form U)	DPST-NO (2 Form A), SPST-NO (DM) (1 Form U), SPST-NO (1 Form A)
Contact Material	Silver Alloy	Silver Alloy
Contact Rating (Current)	25 A	15 - 70 A
Mounting Type	Chassis Mount	Through Hole, Chassis Mount
Must Operate Voltage	7.2 VDC	7.2 - 14.4 VDC
Must Release Voltage	1.6 VDC	1.6 - 3.2 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	2 ms	2 ms
Switching Voltage	14 VDC	14 - 28 VDC
Termination Style	-	PC Pin, Quick Connect - 0.187"/0.250"

RELAY GEN PURPOSE DPST 25A 12V

Part	Termination Style	Coil Voltage	Release Time	Contact Form	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Must Release Voltage	Coil Current	Must Operate Voltage	Contact Rating (Current)	Relay Type	Coil Resistance	Mounting Type	Coil Type	Operate Time
TE Connectivity AMP Connectors 5-1393304-7	PC Pin	12 VDC	2 ms	DPST-NO (2 Form A)	Silver Alloy	125 °C	-40 °C	14 VDC	1.6 VDC	133.3 mA	7.2 VDC	25 A	General Purpose	90 Ohms	Through Hole	Non Latching	7 ms
TE Connectivity AMP Connectors 6-1393304-8	PC Pin	24 VDC	2 ms	DPST-NO (2 Form A)	Silver Alloy	125 °C	-40 °C	28 VDC	3.2 VDC	74.1 mA	14.4 VDC	15 A	General Purpose	324 Ohms	Through Hole	Non Latching	7 ms
TE Connectivity AMP Connectors 7-1393304-1		12 VDC	2 ms	SPST-NO (DM) (1 Form U)	Silver Alloy	125 °C	-40 °C	14 VDC	1.6 VDC	133.3 mA	7.2 VDC	25 A	General Purpose	90 Ohms	Chassis Mount	Non Latching	7 ms
TE Connectivity AMP Connectors 1-1393304-8	Quick Connect - 0.187"/0.250"	24 VDC	2 ms	SPST-NO (1 Form A)	Silver Alloy	125 °C	-40 °C	24 VDC	3.2 VDC	74.1 mA	14.4 VDC	70 A	General Purpose	324 Ohms	Chassis Mount	Non Latching	7 ms
