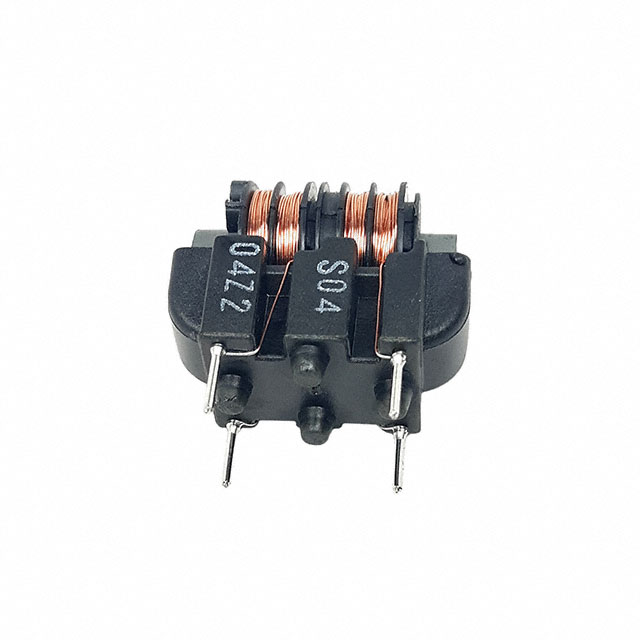

SSR10VS-22026
ActiveKEMET
COMMON MODE CHOKES DUAL 2600UH 10KHZ 2.2A 0.1OHM DCR THRU-HOLE TRAY
Deep-Dive with AI
Search across all available documentation for this part.
SSR10VS-22026
ActiveKEMET
COMMON MODE CHOKES DUAL 2600UH 10KHZ 2.2A 0.1OHM DCR THRU-HOLE TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSR10VS-22026 |
|---|---|
| Current Rating (Max) [Max] | 2.2 A |
| DC Resistance (DCR) (Max) [Max] | 100 mOhm |
| Height (Max) | 0.827 in |
| Height (Max) | 21 mm |
| Inductance @ Frequency | 2.6 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 0.925 " |
| Size / Dimension [x] | 23.5 mm |
| Size / Dimension [y] | 0.512 in |
| Size / Dimension [y] | 13 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.36 | |
| 10 | $ 0.99 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.86 | |||
| 300 | $ 0.84 | |||
| 500 | $ 0.80 | |||
Description
General part information
SSR10VS Series
2.6 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2.2A DCR 100mOhm
