335-90-122-00-160000

Active

Mill-Max Manufacturing Corp.

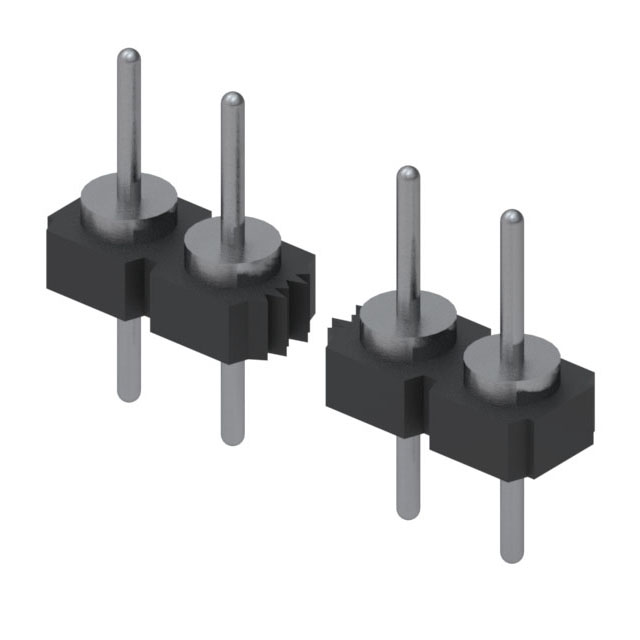

CONN HEADER VERT 22POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

335-90-122-00-160000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 22POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	335-90-122-00-160000

Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.05 in
Insulation Height	1.27 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length [x]	0.299 in
Overall Contact Length [x]	7.6 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	100 V, 150 VDC

335-90 Series

Part	Contact Material	Number of Positions	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Height	Insulation Height	Voltage Rating	Insulation Color	Contact Finish - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions Loaded	Contact Finish - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions
Mill-Max Manufacturing Corp. 335-90-113-00-160000	Brass Alloy	13	Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 335-90-116-00-160000	Brass Alloy		Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm	16
Mill-Max Manufacturing Corp. 335-90-108-00-160000	Brass Alloy	8	Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 335-90-110-00-160000	Brass Alloy	10	Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 335-90-122-00-160000	Brass Alloy	22 positions	Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 335-90-107-00-160000	Brass Alloy	7	Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 335-90-117-00-160000	Brass Alloy		Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 335-90-130-00-160000	Brass Alloy	30	Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 335-90-127-00-160000	Brass Alloy	27	Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm
Mill-Max Manufacturing Corp. 335-90-119-00-160000	Brass Alloy	19	Circular	5.08 µm	200 µin	Solder	Through Hole	Push-Pull	200 µin	5.08 µm	Male Pin	1	0.104 in	2.64 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.05 in	1.27 mm	100 V 150 VDC	Black	Tin-Lead	Unshrouded	0.125 in	3.18 mm	0.1 in	2.54 mm	Header	All	Tin-Lead	0.299 in	7.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	54	$ 14.57

Description

General part information

335-90 Series

Connector Header Through Hole 22 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
