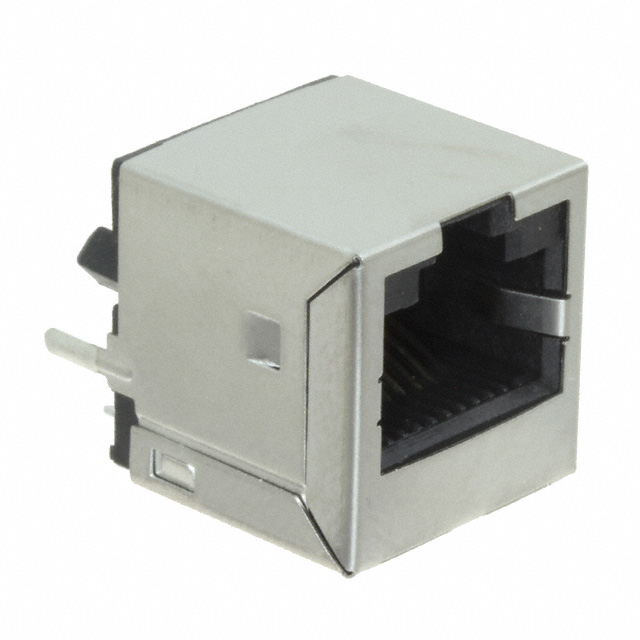

RJE741881410A
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C VERT SHLD
Deep-Dive with AI
Search across all available documentation for this part.
RJE741881410A
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C VERT SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJE741881410A |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Vertical |
| Shielding | Shielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.16 | |
| 10 | $ 2.87 | |||
| 25 | $ 2.72 | |||
| 40 | $ 2.65 | |||
| 80 | $ 2.53 | |||
| 240 | $ 2.21 | |||
| 480 | $ 2.15 | |||
| 960 | $ 1.83 | |||
| 2400 | $ 1.70 | |||
Description
General part information
RJE74188 Series
Jack Modular Connector 8p8c Vertical Shielded
