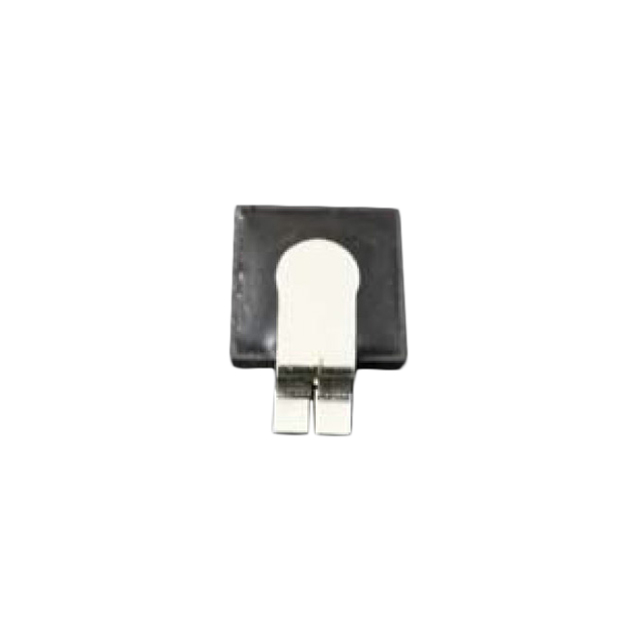

121SPC045A

Active

SMC Diode Solutions

DIODE SCHOTTKY 45V 120A SPD-3A

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 45V 120A SPD-3A

Technical Specifications

Parameters and characteristics for this part

Specification	121SPC045A

Capacitance @ Vr, F	4800 pF
Current - Average Rectified (Io)	120 A
Current - Reverse Leakage @ Vr	2.4 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SPD-3A
Speed	200 mA, 500 ns
Supplier Device Package	SPD-3A
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If [Max]	660 mV

DIODE SCHOTTKY 45V 120A SPD-3A

Part	Current - Average Rectified (Io)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Package / Case	Mounting Type	Current - Reverse Leakage @ Vr	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F
SMC Diode Solutions 121SPC045A	120 A	SPD-3A	660 mV	45 V	Schottky	SPD-3A	Surface Mount	2.4 mA	200 mA, 500 ns	175 ░C	-55 C	4800 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 45 V 120A Surface Mount SPD-3A
