PJ12106RTW

Active

Hammond Manufacturing

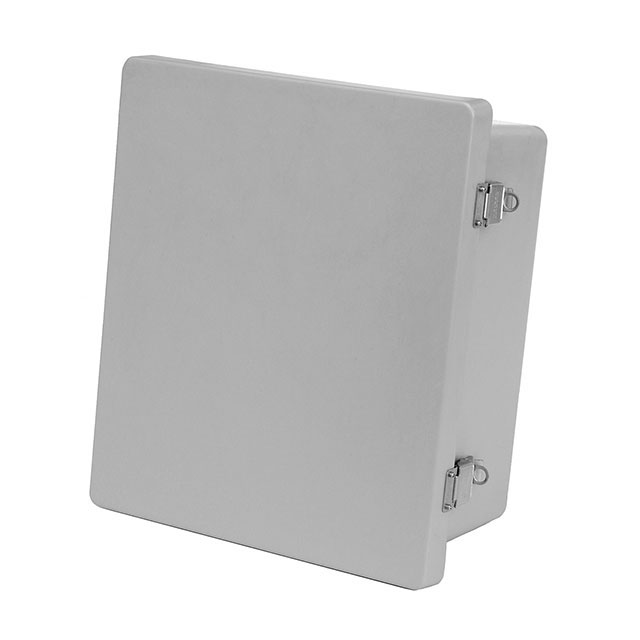

GRAY FIBERGLASS POLYESTER WALL MOUNT JUNCTION BOX

Search across all available documentation for this part.

Active

Hammond Manufacturing

GRAY FIBERGLASS POLYESTER WALL MOUNT JUNCTION BOX

Technical Specifications

Parameters and characteristics for this part

Specification	PJ12106RTW

Area (L x W)	1058 cm²
Area (L x W)	164 in²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Twist Latch, Window, PCB Supports, Stainless Steel Hinges
Height [z]	8 "
Height [z]	203.2 mm
Material	Fiberglass/Polyester
Ratings	UL-508, NEMA 12, NEMA 3, NEMA 4, NEMA 13, NEMA 4X, IP66, NEMA 1, NEMA 2
Size / Dimension [x]	13.77 "
Size / Dimension [x]	349.76 mm
Size / Dimension [y]	302.26 mm
Size / Dimension [y]	11.9 "
Weight	3.6 kg
Weight	8 lbs

Part	Features	Ratings	Weight	Weight	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Container Type	Color	Area (L x W)	Area (L x W)	Design
Hammond Manufacturing PJ12106RTW	PCB Supports Stainless Steel Hinges Twist Latch Window	IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 4 NEMA 4X UL-508	3.6 kg	8 lbs	8 "	203.2 mm	302.26 mm	13.77 "	11.9 "	349.76 mm	Fiberglass/Polyester	Box	Gray	1058 cm²	164 in²	Hinged Door Lid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 265.65

General part information

Box Fiberglass/Polyester Gray Hinged Door, Lid 13.770" L x 11.900" W (349.76mm x 302.26mm) X 8.000" (203.20mm)
