MPDTH03050WAS

Active

Murata Power Solutions Inc.

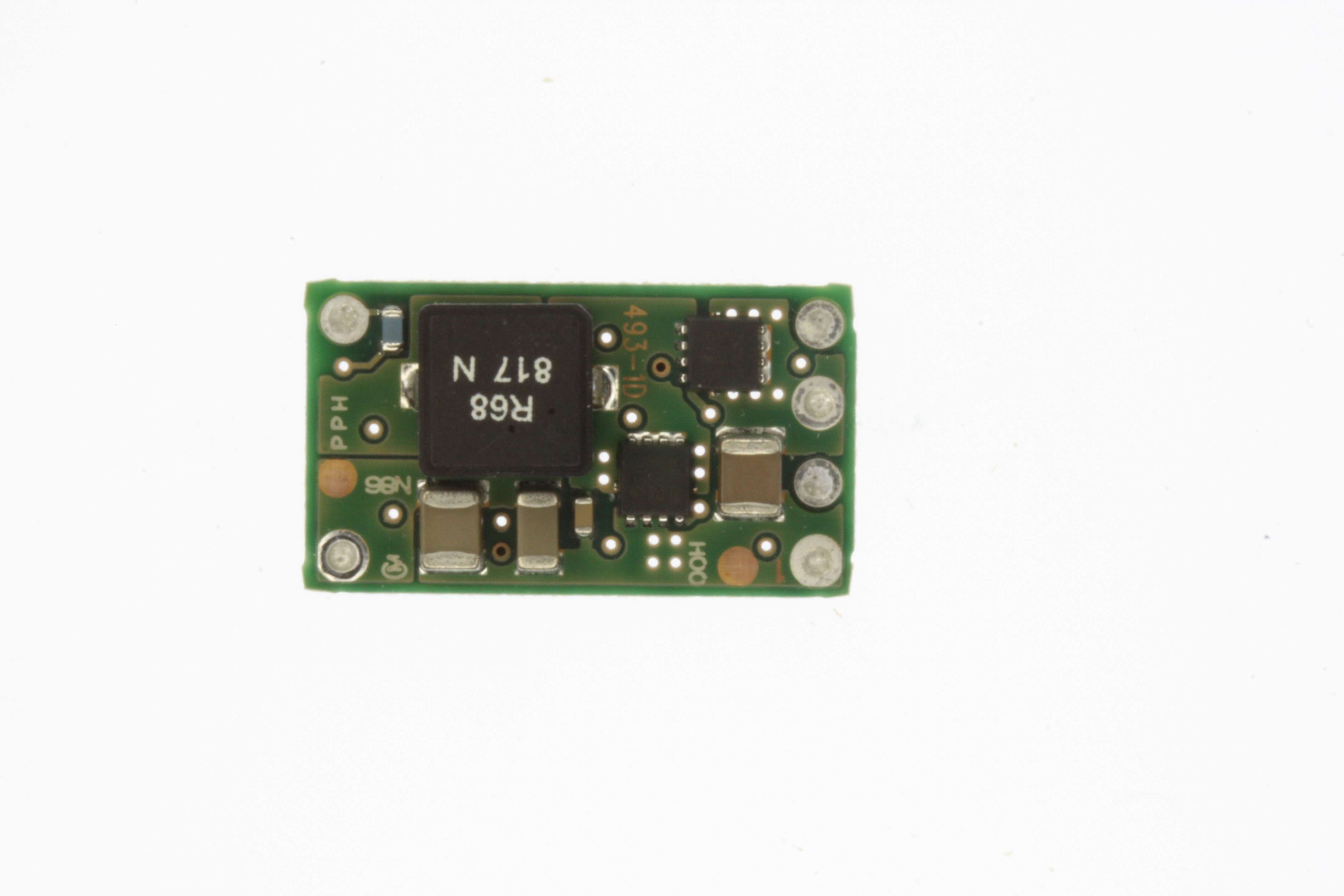

DC DC CONVERTER 0.8-2.5V 15W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-2.5V 15W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MPDTH03050WAS	MPDTH03 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	6 A	6 - 15 A
Efficiency	94 %	93 - 94 %
Features	UVLO, Remote On/Off, SCP	UVLO, Remote On/Off, SCP
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-SMD Module	10-DIP Module, 6-DIP Module, 6-SMD Module
Power (Watts)	15 W	15 - 37 W
Size / Dimension	-	8.5 - 9 mm
Size / Dimension	-	12.6 - 15.8 mm
Size / Dimension [x]	22.1 mm	22.1 - 34.8 mm
Size / Dimension [x]	0.87 in	0.87 - 1.37 in
Size / Dimension [y]	12.6 mm	12.6 mm
Size / Dimension [y]	0.49 in	0.49 - 0.62 "
Size / Dimension [z]	9.1 mm	9.1 mm
Size / Dimension [z]	0.36 in	0.33 - 0.36 "
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	3.65 V	3.65 V
Voltage - Input (Min) [Min]	2.95 V	2.95 V
Voltage - Output 1 [Max]	2.5 V	2.5 V
Voltage - Output 1 [Min]	0.8 V	0.8 V

DC DC CONVERTER 0.8-2.5V 37W

Part	Mounting Type	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Type	Power (Watts)	Number of Outputs	Package / Case	Current - Output (Max) [Max]	Features	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MPDTH03010WAH	Through Hole	2.95 V	0.62 "	1.37 in	34.8 mm	9 mm	0.35 "	15.8 mm	2.5 V	0.8 V	93 %	3.65 V	85 °C	-40 °C	ITE (Commercial)	Non-Isolated PoL Module	37 W	1	10-DIP Module	15 A
Murata Power Solutions Inc. MPDTH03050WAH	Through Hole	2.95 V	0.49 in	0.87 in	22.1 mm	8.5 mm	0.33 in	12.6 mm	2.5 V	0.8 V	94 %	3.65 V	85 °C	-40 °C	ITE (Commercial)	Non-Isolated PoL Module	15 W	1	6-DIP Module	6 A
Murata Power Solutions Inc. MPDTH03050WAS	Surface Mount	2.95 V	0.49 in	0.87 in	22.1 mm		0.36 in		2.5 V	0.8 V	94 %	3.65 V	85 °C	-40 °C	ITE (Commercial)	Non-Isolated PoL Module	15 W	1	6-SMD Module	6 A	Remote On/Off, SCP, UVLO	12.6 mm	9.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 6A 2.95V - 3.65V Input

Technical documentation and resources

No documents available
