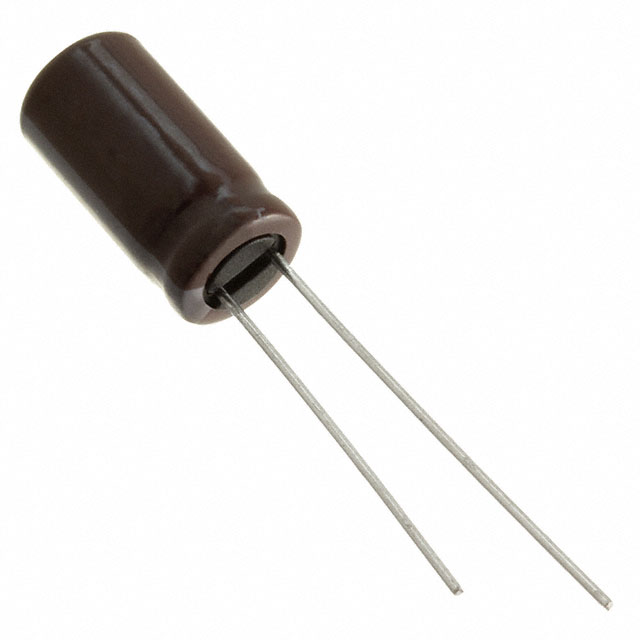

EKY-250ELL331MH15D

Obsolete

Chemi-Con

CAP ALUM 330UF 20% 25V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-250ELL331MH15D

Obsolete

Chemi-Con

CAP ALUM 330UF 20% 25V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EKY-250E Series

330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-250ELL331MH15D	EKY-250E Series

Applications	General Purpose	General Purpose
Capacitance	330 µF	1.2 - 4700 µF
Height - Seated (Max)	-	0.492 - 1.24 in
Height - Seated (Max)	-	1.634 - 31.5 mm
Height - Seated (Max)	-	41.5 mm
Height - Seated (Max) [Max] [z]	16.5 mm	13 - 37 mm
Height - Seated (Max) [Max] [z]	16.51 mm	0.512 - 16.51 in
Impedance	87 mOhms	12 - 580 mOhms
Lead Spacing	3.5 mm	2 - 7.5 mm
Lead Spacing	0.138 in	0.079 - 0.295 in
Lifetime @ Temp.	7000 Hrs	5000 - 10000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	840 mA	1.05 - 840 mA
Ripple Current @ Low Frequency	420 mA	1.14 - 870 mA
Size / Dimension [diameter]	0.315 "	0.197 - 0.709 "
Size / Dimension [diameter]	8 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	25 VDC	25 VDC

EKY-250E Series

CAP ALUM 47UF 20% 25V RADIAL TH

Part	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Impedance	Polarization	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Applications	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Lifetime @ Temp.	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-250ELL470ME11D	2 mm	0.079 in	210 mA	84 mA	580 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	47 µF	0.492 in	12.5 mm	20 %	5000 Hrs	Through Hole	5 mm	0.197 "
Chemi-Con EKY-250ETD471MH20D	3.5 mm	0.138 in	1.05 A	525 mA	69 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	470 µF	0.846 in	21.5 mm	20 %	7000 Hrs	Through Hole	8 mm	0.315 "
Chemi-Con EKY-250ETD681MJ20S	5 mm	0.197 in	1.4 A	840 mA	46 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	680 µF	0.846 in	21.5 mm	20 %	7000 Hrs	Through Hole	10 mm	0.394 in
Chemi-Con EKY-250ELL472MMP1S	7.5 mm	0.295 in	4.22 A	3.587 A	14 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	4700 µF			20 %	10000 Hrs	Through Hole	18 mm	0.709 "	37 mm	1.457 in
Chemi-Con EKY-250ETC471MH20D	3.5 mm	0.138 in	1.05 A	525 mA		Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	470 µF	0.846 in	21.5 mm	20 %	7000 Hrs	Through Hole	8 mm	0.315 "
Chemi-Con EKY-250ELL331MH15D	3.5 mm	0.138 in	840 mA	420 mA	87 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	330 µF			20 %	7000 Hrs	Through Hole	8 mm	0.315 "	16.5 mm	16.51 mm
Chemi-Con EKY-250ELL182MK30S	5 mm	0.197 in	2.65 A	1.59 A	24 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	1800 µF	1.24 in	31.5 mm	20 %	10000 Hrs	Through Hole	12.5 mm	0.492 in
Chemi-Con EKY-250ELL221MHB5D	3.5 mm	0.138 in	640 mA	320 mA	130 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	220 µF			20 %	7000 Hrs	Through Hole	8 mm	0.315 "	13 mm	0.512 "
Chemi-Con EKY-250ELL122MM15S	7.5 mm	0.295 in	2.21 A	1.326 A	43 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	1.2 mF			20 %	10000 Hrs	Through Hole	18 mm	0.709 "	16.5 mm	16.51 mm
Chemi-Con EKY-250ELL101MF11D	2.5 mm	0.098 in	340 mA	136 mA	220 mOhms	Polar	25 VDC	-40 °C	105 ░C	Radial, Can	General Purpose	100 µF	0.492 in	12.5 mm	20 %	5000 Hrs	Through Hole	6.3 mm	0.248 in
