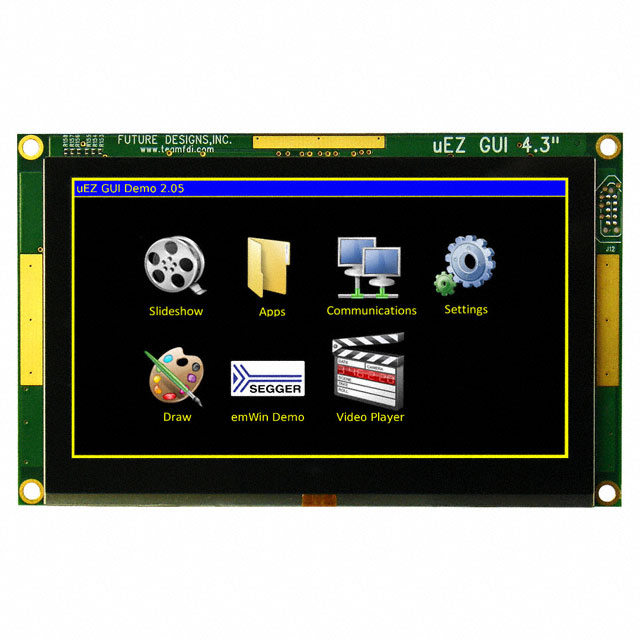

UEZGUI-4088-43WQN-BA

Active

Future Designs Inc.

4.3" PCAP TOUCH LCD GUI MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUEZGUI-4088-43WQN Start Here Guide

UEZGUI-4088-43WQN-BA

Active

Future Designs Inc.

4.3" PCAP TOUCH LCD GUI MODULE

Deep-Dive with AI

DocumentsUEZGUI-4088-43WQN Start Here Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UEZGUI-4088-43WQN-BA

Backlight	LED - White
Diagonal Screen Size	109.22 mm
Diagonal Screen Size	4.3 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels [x]	480
Dot Pixels [y]	272
Graphics Color	Green, Red, Blue
Interface	Serial, I2C, SPI
Touchscreen	Capacitive
Viewing Area [x]	95.04 mm
Viewing Area [y]	54 mm

UEZGUI Series

Part	Supplied Contents	Type	Secondary Attributes	Primary Attributes	Primary Attributes [y]	Primary Attributes	Primary Attributes [x]	Utilized IC / Part	Function	Embedded	Display Mode	Interface	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [x]	Viewing Area [y]	Backlight	Diagonal Screen Size	Diagonal Screen Size	Display Type	Controller Type	Graphics Color	Contents	Touchscreen
Future Designs Inc. UEZGUI-4088-43WQN	Board(s) Cable(s) Power Supply	Display	Graphical User Interface (GUI)	4.3 in	272	WQVGA	480	LPC4088	LCD Touch Screen	32-Bit MCU
Future Designs Inc. UEZGUI-4088-43WQE-BA											Transmissive	I2C SPI USB	272	480	95.04 mm	54 mm	LED - White	109.22 mm	4.3 in	TFT - Color	LPC4088	Blue Green Red
Future Designs Inc. UEZGUI-4357-50WVN	Board(s) Cable(s) Power Supply	Display	Graphical User Interface (GUI)	5 in	480		800	LPC4357	LCD Touch Screen	32-Bit MCU													Board(s) Cable(s) Power Supply
Future Designs Inc. UEZGUI-4088-43WQN-BA											Transmissive	I2C Serial SPI	272	480	95.04 mm	54 mm	LED - White	109.22 mm	4.3 in	TFT - Color		Blue Green Red		Capacitive
Future Designs Inc. UEZGUI-EXP1	Board(s) Cable(s)	Interface	On-Board LEDs			I/O Connection for uEZGUI Host Board			Ethernet RS232/RS485 USB
Future Designs Inc. UEZGUI-4088-43WQH-BA											Transmissive	I2C SPI USB	272	480	95.04 mm	54 mm	LED - White	109.22 mm	4.3 in	TFT - Color	LPC4088	Blue Green Red		Resistive
Future Designs Inc. UEZGUI-1788-56VI-BA											Transmissive	I2C SPI	480	640	112.01 mm	84.58 mm	LED - White	142.24 mm	5.6 "	TFT - Color	LPC1788	Blue Green Red		Resistive
Future Designs Inc. UEZGUI-1788-43WQR		Display	Graphical User Interface (GUI)	4.3 in	272	WQVGA	480		LCD Touch Screen	32-Bit MCU													Board(s) Cable(s)
Future Designs Inc. UEZGUI-RX62N-35QT	Board(s) Cable(s)	Display	Graphical User Interface (GUI)	3.5 in	240	QVGA	320	RX62N	LCD Touch Screen	32-Bit MCU
Future Designs Inc. UEZGUI-1788-43WQT-BA											Transmissive	I2C SPI USB	272	480	95.04 mm	54 mm	LED - White	109.22 mm	4.3 in	TFT - Color	LPC1788	Blue Green Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 280.00

Description

General part information

UEZGUI Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, Serial, SPI 4.3" (109.22mm) 480 x 272

Documents

Technical documentation and resources

UEZGUI-4088-43WQN Start Here Guide

Datasheet
