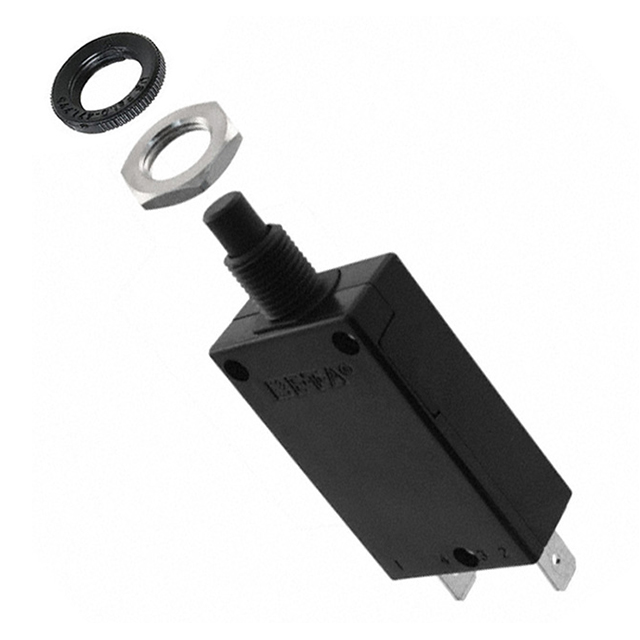

CIRCUIT BREAKERS SINGLE POLE THERMAL CIRCUIT BREAKER WITH PRESS-TO-RESET, TEASE-FREE, TRIP-FREE, SNAP ACTION MECHANISM. TYPE 2-5700 CAN BE SUPPLIED AS A PUSH-PUSH SWITCH/CIRCUIT BREAKER (R-TYPE TO CBE TO EN 60934 IN PRESS-TO-RESET CONFIGURATION; S-TYPE W

Find alt

Alpha

2-5700-IG1-P10-DD-16A

Active

E-T-A

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

2-5700 Series

Circuit Breakers Single pole thermal circuit breaker with press-to-reset, tease-free, trip-free, snap action mechanism. Type 2-5700 can be supplied as a push-push switch/circuit breaker (R-type TO CBE to EN 60934 in press-to-reset configuration; S-type w

Technical Specifications

Parameters and characteristics for this part

Specification	2-5700-IG1-P10-DD-16A

Actuator Type	Push-Push
Approval Agency	IEC 60934, CSA C22.2 No 235, UL1077, GB 17701
Breaker Type	Thermal
Current Rating	16 A
Illumination	None
Mounting Type	Panel Mount
Number of Poles	1
Voltage Rating - AC	250 V
Voltage Rating - DC	50 V

2-5700 Series

Part	Current Rating	Actuator Type	Illumination	Number of Poles	Approval Agency	Voltage Rating - AC	Voltage Rating - DC	Breaker Type	Mounting Type
E-T-A 2-5700-IG1-P10-DD-4A	4 A	Push-Push	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-K10-DD-000040-10A	10 A	Push-Push	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-K14-DD-2A	2 A	Push-Push	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-K14-15A	15 A	Push to Reset	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-P10-DD-6A	6 A	Push-Push	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-P10-3.2A	3.2 A	Push to Reset	None	1	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-P10-DD-0.5A	0.5 A	Push-Push	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-P10-0.6A	600 mA	Push-Push	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-P10-DD-16A	16 A	Push-Push	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
E-T-A 2-5700-IG1-P10-DD-20A	20 A	Push-Push	None	1	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	250 V	50 V	Thermal	Panel Mount
