AAT4910IJS-T1

Obsolete

Skyworks Solutions Inc.

IC HALF BRIDGE DRIVER SC70

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

IC HALF BRIDGE DRIVER SC70

Technical Specifications

Parameters and characteristics for this part

Specification	AAT4910IJS-T1

Fault Protection	Over Temperature, Shoot-Through
Interface	On/Off
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C

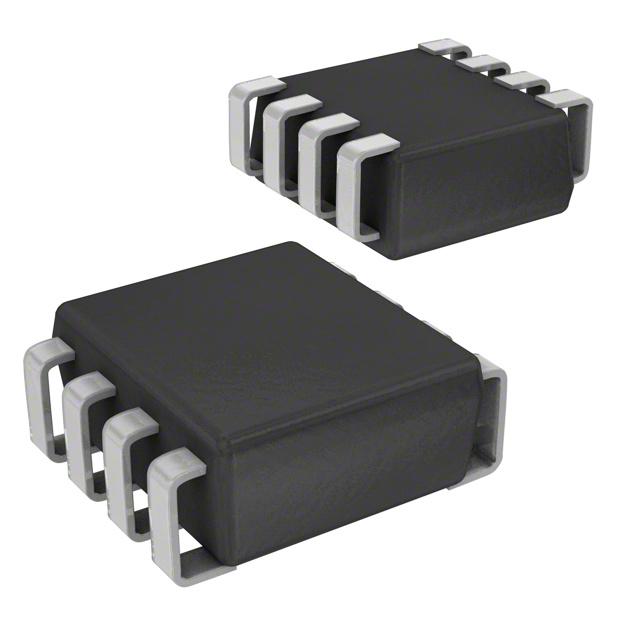

Package / Case	8-TFSOJ
Package / Case [custom]	0.069 in
Package / Case [custom]	1.75 mm
Supplier Device Package	8-SC70JW
Technology	Power MOSFET
Voltage - Load	28 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Package / Case	Package / Case [custom]	Package / Case [custom]	Voltage - Load	Load Type	Fault Protection	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Technology	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface
Skyworks Solutions Inc. AAT4910IJS-T1	8-TFSOJ	0.069 in	1.75 mm	28 V	Inductive	Over Temperature Shoot-Through	150 °C	-40 °C	Surface Mount	Power MOSFET	8-SC70JW	4.5 V	5.5 V	On/Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Half Bridge Driver DC Motors, DC-DC Converters Power MOSFET 8-SC70JW
