1910089

Active

Phoenix Contact

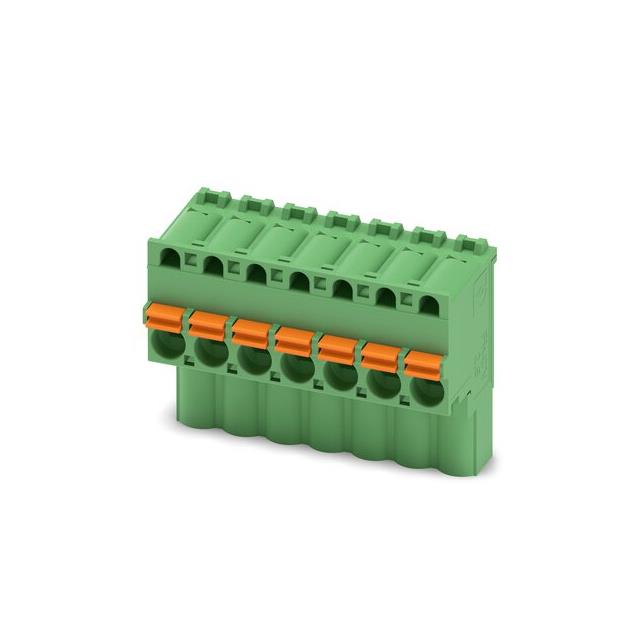

PLUGGABLE TERMINAL BLOCKS 7 POS 5MM PITCH PLUG 24-12AWG SPRING

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 7 POS 5MM PITCH PLUG 24-12AWG SPRING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1910089	FKCVW Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	12 A	12 A
Current - UL	10 A	10 A
Features	-	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	16.8 mm	16.8 mm
Insulation Height	0.661 in	0.661 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	7	2 - 8
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Plug Wire Entry	270 °	270 °
Positions Per Level	7	2 - 8
Termination Style	Push-In Spring, Screwless - Leg Spring	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	630 V	630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	26 AWG	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛	0.2 mm˛
Wire Gauge or Range - mm²	-	0.2 mm²
Wire Gauge or Range - mm²	-	2.5 mm²
Wire Strip Length	10 mm	10 mm

Pluggable Terminal Blocks 8 pos 5.08mm pitch Plug 24-12AWG Spring

Part	Voltage - IEC	Number of Positions	Current - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Contact Mating Finish	Color	Insulation Height	Insulation Height	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material Flammability Rating	Type	Termination Style	Wire Strip Length	Positions Per Level	Mounting Type	Housing Material	Features	Plug Wire Entry	Current - IEC	Pitch [x]	Pitch [x]	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1873867	630 V	8	10 A	12 AWG	26 AWG	300 V	Tin	Green	16.8 mm	0.661 in	0.2 mm²	2.5 mm²	UL94 V-0	Plug, Female Sockets	Push-In Spring, Screwless - Leg Spring	10 mm	8	Free Hanging (In-Line)	Polyamide (PA), Nylon	Mating Flange, Retention Latches (Non-Wire Side)	270 °	12 A	0.2 in	5.08 mm	1
Phoenix Contact 1873650	630 V	2	10 A	12 AWG	26 AWG	300 V	Tin	Green	16.8 mm	0.661 in			UL94 V-0	Plug, Female Sockets	Push-In Spring, Screwless - Leg Spring	10 mm	2	Free Hanging (In-Line)	Polyamide (PA), Nylon		270 °	12 A	0.2 in	5.08 mm	1	0.2 mm˛	2.5 mm˛
Phoenix Contact 1910089	630 V	7	10 A	12 AWG	26 AWG	300 V	Tin	Green	16.8 mm	0.661 in			UL94 V-0	Plug, Female Sockets	Push-In Spring, Screwless - Leg Spring	10 mm	7	Free Hanging (In-Line)	Polyamide (PA), Nylon		270 °	12 A	0.197 in	5 mm	1	0.2 mm˛	2.5 mm˛
