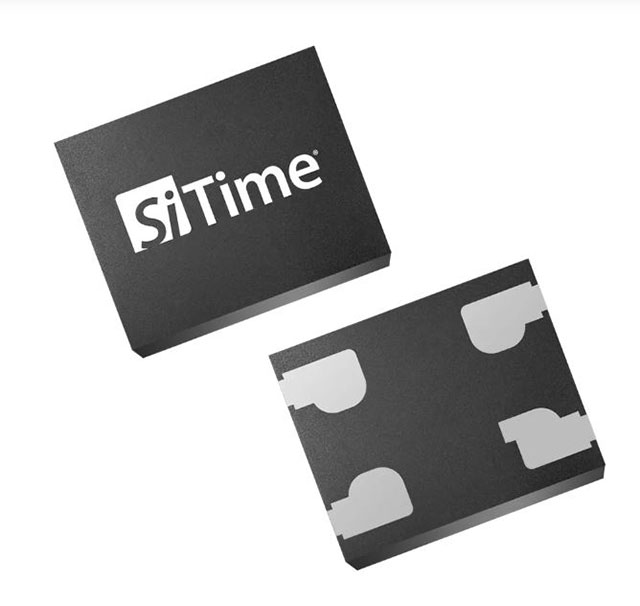

SIT1424BA-21-XXN-27.000000

Active

SiTime

MEMS OSC 27.0000MHZ LVCMOS SMD

Search across all available documentation for this part.

Active

SiTime

MEMS OSC 27.0000MHZ LVCMOS SMD

Technical Specifications

Parameters and characteristics for this part

MEMS OSC 27.0000MHZ LVCMOS SMD

Part	Package / Case	Base Resonator	Type	Current - Supply (Max) [Max]	Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Frequency Stability	Ratings
SiTime SIT1424BA-21-XXN-27.000000	4-SMD, No Lead	MEMS	XO (Standard)	4.8 mA	27 MHz	3.2 mm	2.5 mm	0.126 in	0.098 in	3.3 V	2.5 V	LVCMOS	0.8 mm	0.031 "	125 °C	-40 °C	Surface Mount	20 ppm	AEC-Q100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

27 MHz XO (Standard) LVCMOS Oscillator 2.5V ~ 3.3V 4-SMD, No Lead
