16880-4SG-522

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	16880-4SG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Shielding	Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Fastening Type	Voltage Rating	Current Rating (Amps)	Primary Material	Mounting Type	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Color	Orientation	Material Flammability Rating	Number of Positions	Applications	Contact Finish - Mating	Contact Material
Conxall/Switchcraft 16880-4SG-522	Unshielded	Crimp	Female Sockets, Plug	85 °C	-40 °C	Backshell	Bayonet Lock	600 VAC	6 A	Plastic	Free Hanging (In-Line)	Thermoplastic	5.84 mm	0.22 in	5.59 mm	0.23 in	IP67 - Dust Tight, Waterproof	Black	Keyed	UL94 HB	4	Data, Industrial, Instrumentation, Medical	Gold	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

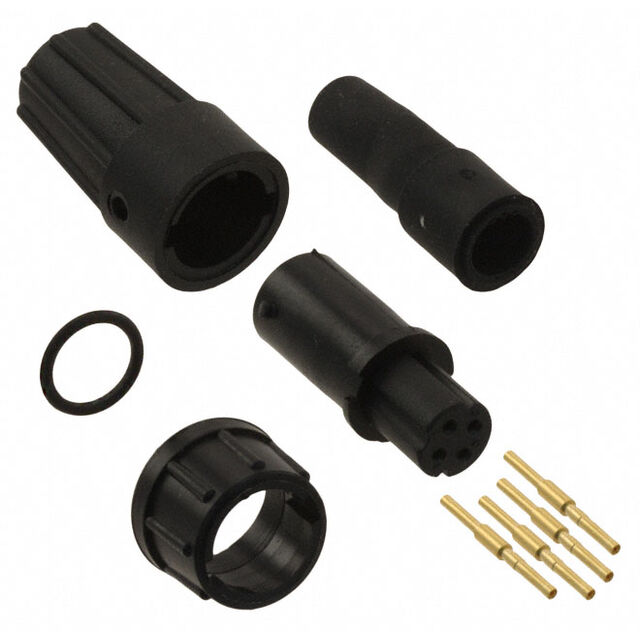

4 Position Circular Connector Plug, Female Sockets Crimp
