L6R24D-240-C8
ActiveTri-Mag, LLC
AC/DC DESKTOP ADAPTER 24V 24W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

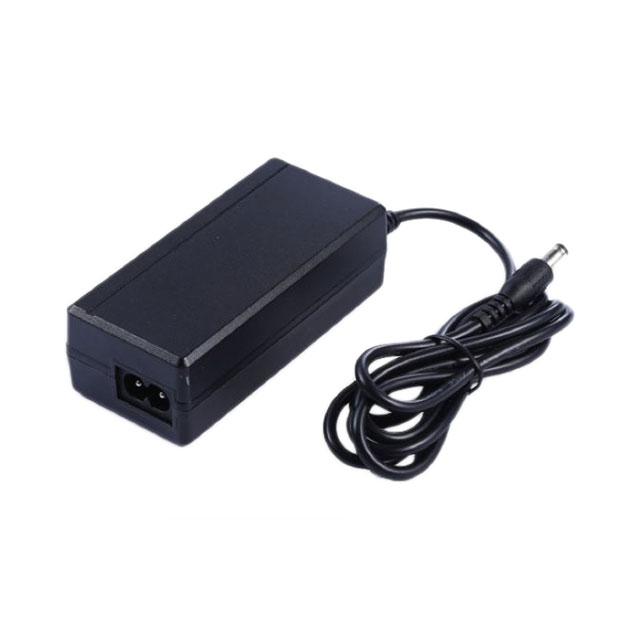

L6R24D-240-C8
ActiveTri-Mag, LLC
AC/DC DESKTOP ADAPTER 24V 24W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | L6R24D-240-C8 | L6R24 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | cUL, FCC, UL | cUL, FCC, UL |
| Cord Length | 1.5 m | 1.5 m |
| Cord Length | 59 in | 59 in |
| Current - Output (Max) [Max] | 1 A | 1 - 800 A |
| Efficiency | Level VI | Level VI |
| Form | Desktop (Class II) | Wall Mount (Class II), Desktop (Class II) |
| Input Connector | IEC 320-C8 | NEMA 1-15P, IEC 320-C8 |
| Input Type | Cord | Fixed Blade, Cord |
| No Load Power Consumption | 100 mW | 100 mW |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Output Connector | Barrel Plug | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm | 2.1 - 5.5 mm |
| Output Connector [x] | 9.5 mm | 9.5 mm |
| Polarization | Positive Center | Positive Center |
| Power (Watts) | 24 W | 23 - 25 W |
| Region Utilized | International | North America, International |
| Size / Dimension [x] | 91.9 mm | 71.1 - 91.9 mm |
| Size / Dimension [x] | 3.62 in | 2.8 - 3.62 in |
| Size / Dimension [y] | 1.79 " | 1.7 - 1.79 " |
| Size / Dimension [y] | 45.4 mm | 43.2 - 45.4 mm |
| Size / Dimension [z] | 1.08 " | 1.08 - 1.3 " |
| Size / Dimension [z] | 27.5 mm | 27.5 - 33 mm |
| Standard Number | 62368-1 | 62368-1 |
| Voltage - Input [Max] | 264 VAC | 264 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Output | 24 V | 18 - 36 V |
| Weight | 0.309 lb | 0.309 lb |
| Weight | 140 g | 140 g |
L6R24 Series
AC/DC WALL MOUNT ADAPTER 24V 24W
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Output | Current - Output (Max) [Max] | Output Connector [diameter] | Output Connector [x] | Output Connector | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Form | Region Utilized | Applications | No Load Power Consumption | Efficiency | Approval Agency | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Cord Length | Cord Length | Input Connector | Input Type | Polarization | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tri-Mag, LLC L6R24-240 | 71.1 mm | 33 mm | 2.8 in | 1.3 " | 1.7 " | 43.2 mm | 24 V | 1 A | 2.1 mm, 5.5 mm | 9.5 mm | Barrel Plug | 90 VAC | 264 VAC | 24 W | Wall Mount (Class II) | North America | ITE (Commercial) | 100 mW | Level VI | cUL, FCC, UL | 62368-1 | 40 °C | 0 °C | 1.5 m | 59 in | NEMA 1-15P | Fixed Blade | Positive Center | ||
Tri-Mag, LLC L6R24D-360-C8 | 91.9 mm | 27.5 mm | 3.62 in | 1.08 " | 1.79 " | 45.4 mm | 36 V | 700 mA | 2.1 mm, 5.5 mm | 9.5 mm | Barrel Plug | 90 VAC | 264 VAC | 25 W | Desktop (Class II) | International | ITE (Commercial) | 100 mW | Level VI | cUL, FCC, UL | 62368-1 | 40 °C | 0 °C | 1.5 m | 59 in | IEC 320-C8 | Cord | Positive Center | 0.309 lb | 140 g |
Tri-Mag, LLC L6R24D-240-C8 | 91.9 mm | 27.5 mm | 3.62 in | 1.08 " | 1.79 " | 45.4 mm | 24 V | 1 A | 2.1 mm, 5.5 mm | 9.5 mm | Barrel Plug | 90 VAC | 264 VAC | 24 W | Desktop (Class II) | International | ITE (Commercial) | 100 mW | Level VI | cUL, FCC, UL | 62368-1 | 40 °C | 0 °C | 1.5 m | 59 in | IEC 320-C8 | Cord | Positive Center | 0.309 lb | 140 g |
Tri-Mag, LLC L6R24D-180-C8 | 91.9 mm | 27.5 mm | 3.62 in | 1.08 " | 1.79 " | 45.4 mm | 18 V | 1.3 A | 2.1 mm, 5.5 mm | 9.5 mm | Barrel Plug | 90 VAC | 264 VAC | 23 W | Desktop (Class II) | International | ITE (Commercial) | 100 mW | Level VI | cUL, FCC, UL | 62368-1 | 40 °C | 0 °C | 1.5 m | 59 in | IEC 320-C8 | Cord | Positive Center | 0.309 lb | 140 g |
Tri-Mag, LLC L6R24D-300-C8 | 91.9 mm | 27.5 mm | 3.62 in | 1.08 " | 1.79 " | 45.4 mm | 30 VDC | 800 mA | 2.1 mm, 5.5 mm | 9.5 mm | Barrel Plug | 90 VAC | 264 VAC | 24 W | Desktop (Class II) | International | ITE (Commercial) | 100 mW | Level VI | cUL, FCC, UL | 62368-1 | 40 °C | 0 °C | 1.5 m | 59 in | IEC 320-C8 | Cord | Positive Center | 0.309 lb | 140 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.81 | |
| 5 | $ 8.58 | |||
| 10 | $ 8.39 | |||
Description
General part information
L6R24 Series
24V 24 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
