HEN.2F.319.XLNP

Active

LEMO

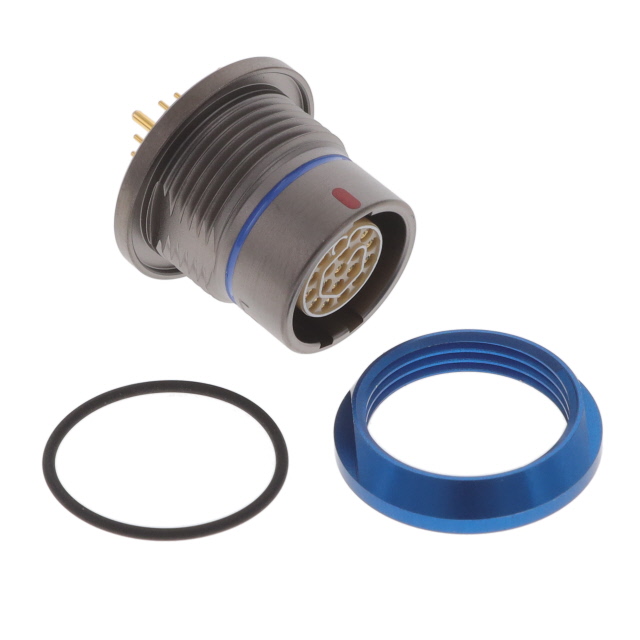

CONN RCPT FMALE 19POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HEN.2F.319.XLNP

Active

LEMO

CONN RCPT FMALE 19POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 160.95
		10	$ 125.70
		25	$ 114.57
		50	$ 107.07

Description

General part information

HEN.2F Series

19 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEN.2F.319.XLNP	HEN.2F Series

Applications	Aerospace	Aerospace
Color	Gray	Gray, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	5 A	5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	19	8 - 19
Operating Temperature [Max]	100 °C	100 - 150 °C
Operating Temperature [Min]	-15 °C	-50 - -15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	319	308 - 319
Shielding	Shielded	Shielded
Termination	Solder	Solder

HEN.2F Series

CONN RCPT FMALE 19POS GOLD SLDR

Part	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Contact Material	Material Flammability Rating	Mounting Type	Mounting Feature	Ingress Protection	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Orientation	Number of Positions	Insert Material	Shell Size - Insert	Fastening Type	Termination	Features	Color	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Shell Finish
LEMO HEN.2F.319.MLNP	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0	Panel Mount, Through Hole	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	5 A	N	19	Polyetheretherketone (PEEK)	319	Push-Pull	Solder	Potted
LEMO HEN.2F.319.XLLPY	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0		Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	5 A	N	19	Polyetheretherketone (PEEK)	319	Push-Pull		Potted	Gray	Metal	100 °C	-15 °C	Aluminum Alloy	Nickel
LEMO HEN.2F.312.XLNP	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0	Panel Mount, Through Hole	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	7 A	N	12	Polyetheretherketone (PEEK)	312	Push-Pull	Solder	Potted	Gray	Metal	100 °C	-15 °C	Aluminum Alloy	Nickel
LEMO HEN.2F.308.XLLP	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0		Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	10 A	N	8	Polyetheretherketone (PEEK)	308	Push-Pull		Potted	Gray	Metal	100 °C	-15 °C	Aluminum Alloy	Nickel
LEMO HEN.2F.319.CLLP	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0		Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	5 A	N	19	Polyetheretherketone (PEEK)	319	Push-Pull		Potted	Silver	Metal	150 °C	-50 °C	Brass	Chrome
LEMO HEN.2F.308.XLNP	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0	Panel Mount, Through Hole	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	10 A	N	8	Polyetheretherketone (PEEK)	308	Push-Pull	Solder	Potted	Gray	Metal	100 °C	-15 °C	Aluminum Alloy	Nickel
LEMO HEN.2F.319.XLNP	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0	Panel Mount, Through Hole	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	5 A	N	19	Polyetheretherketone (PEEK)	319	Push-Pull	Solder	Potted	Gray	Metal	100 °C	-15 °C	Aluminum Alloy	Nickel
LEMO HEN.2F.319.CLNP	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0	Panel Mount, Through Hole	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	5 A	N	19	Polyetheretherketone (PEEK)	319	Push-Pull	Solder	Potted	Silver	Metal	150 °C	-50 °C	Brass	Chrome
LEMO HEN.2F.310.XLNP	Aerospace	59 Áin	1.5 Ám	Shielded	Bronze	UL94 V-0	Panel Mount, Through Hole	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Receptacle, Female Sockets	Gold	8 A	N	10	Polyetheretherketone (PEEK)	310	Push-Pull	Solder	Potted	Gray	Metal	100 °C	-15 °C	Aluminum Alloy	Nickel
