XM2400SN-AL0901

Obsolete

Murata Electronics

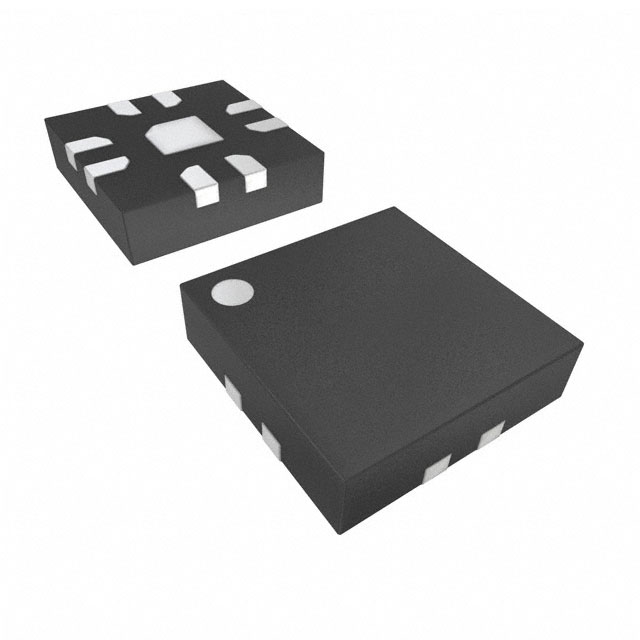

IC RF SWITCH SP3T 2.5GHZ 8QFN

Search across all available documentation for this part.

Obsolete

Murata Electronics

IC RF SWITCH SP3T 2.5GHZ 8QFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM2400SN-AL0901	XM2400SN Series

Circuit	SP3T	SP3T
Frequency Range	-	2.4 GHz
Frequency Range [Max]	2.5 GHz	2.5 GHz
Frequency Range [Min]	2.4 GHz	2.4 GHz
Insertion Loss	0.5 dB	0.5 dB
Isolation	36 dB	25 - 36 dB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-UFQFN Exposed Pad	8-UFQFN Exposed Pad
RF Type	Bluetooth, WLAN	Bluetooth, WLAN, General Purpose
Supplier Device Package	8-QFN (2x2)	8-QFN (2x2)
Test Frequency	2.5 GHz	2.5 GHz
Voltage - Supply	-	5 V
Voltage - Supply	-	2.6 V

IC RF SWITCH SP3T 2.5GHZ 8QFN

Part	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Test Frequency	Supplier Device Package	Isolation	RF Type	Circuit	Package / Case	Insertion Loss	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency Range
Murata Electronics XM2400SN-AL0901	2.5 GHz	2.4 GHz	Surface Mount	85 °C	-40 °C	2.5 GHz	8-QFN (2x2)	36 dB	Bluetooth, WLAN	SP3T	8-UFQFN Exposed Pad	0.5 dB
Murata Electronics XM2400SN-AL0908				85 °C	-40 °C		8-QFN (2x2)	25 dB	General Purpose	SP3T	8-UFQFN Exposed Pad	0.5 dB	5 V	2.6 V	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Switch IC Bluetooth, WLAN SP3T 2.5 GHz 8-QFN (2x2)

Technical documentation and resources

No documents available
