S6J334CJTESE20000

Active

Infineon Technologies

IC MCU 32BT 2.0625MB FLSH 176QFP

Search across all available documentation for this part.

Active

Infineon Technologies

IC MCU 32BT 2.0625MB FLSH 176QFP

Technical Specifications

Parameters and characteristics for this part

Specification	S6J334CJTESE20000

Connectivity	I2C, UART/USART, CSIO, CANbus, LINbus
Core Processor	ARM® Cortex®-R5F
Core Size	32-Bit
Data Converters [custom]	12 b
Data Converters [custom]	48
EEPROM Size	112 K
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

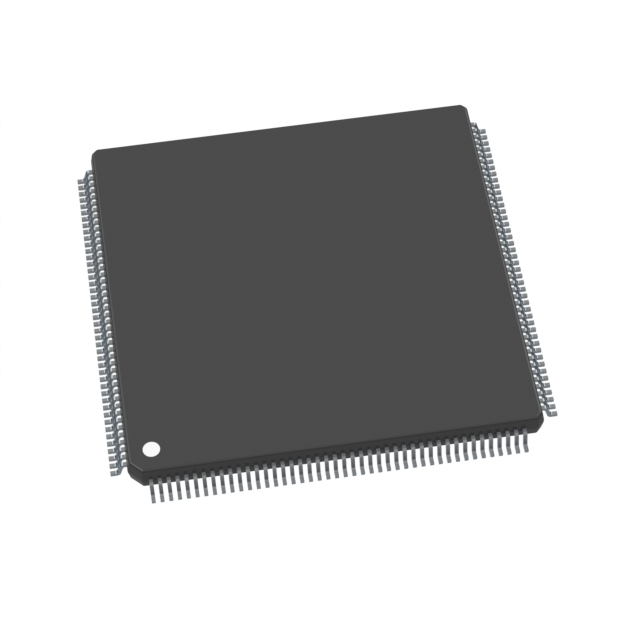

Package / Case	176-LQFP Exposed Pad
Program Memory Size	2.0625 MB
Program Memory Type	FLASH
RAM Size	544 K
Speed	240 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.2 V
Voltage - Supply (Vcc/Vdd) [Min]	3.5 V

Part	Core Processor	Connectivity	Speed	Oscillator Type	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	RAM Size	Core Size	EEPROM Size	Data Converters [custom]	Data Converters [custom]	Package / Case	Program Memory Type	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies S6J334DJTESE2D000	ARM® Cortex®-R5F	CANbus CSIO I2C LINbus UART/USART	240 MHz	Internal	Surface Mount	5.2 V	3.5 V	544 K	32-Bit	112 K	12 b	48	176-LQFP Exposed Pad	FLASH	3.0625 MB	105 °C	-40 °C
Infineon Technologies S6J334CJTESE20000	ARM® Cortex®-R5F	CANbus CSIO I2C LINbus UART/USART	240 MHz	Internal	Surface Mount	5.2 V	3.5 V	544 K	32-Bit	112 K	12 b	48	176-LQFP Exposed Pad	FLASH	2.0625 MB	105 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 26.36

General part information

ARM® Cortex®-R5F Traveo™ T1G Microcontroller IC 32-Bit 240MHz 2.0625MB (2.0625M x 8) FLASH 176-TEQFP (24x24)

Technical documentation and resources

No documents available
