2905495

Active

Phoenix Contact

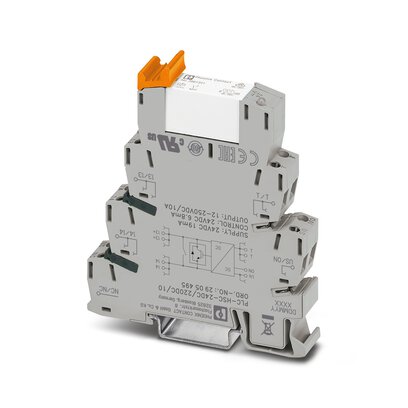

PLC-HSC-24DC/220DC/10

Search across all available documentation for this part.

Active

Phoenix Contact

PLC-HSC-24DC/220DC/10

Technical Specifications

Parameters and characteristics commom to parts in this series

SOLID STATE RELAYS - INDUSTRIAL MOUNT PLC-HPT-24DC/220DC/10

Part	Voltage - Load [Max]	Voltage - Load [Min]	Output Type	Approval Agency	Mounting Type	Termination Style	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input
Phoenix Contact 2905494	250 V	12 V	DC	IEC	DIN Rail	Screw Terminal	10 A	-25 °C	60 °C	Module	19.2 V	28.8 V
Phoenix Contact 2905495	250 V	12 V	DC	EN, IEC	DIN Rail	Screw Terminal	10 A	-25 °C	60 °C	Module	19.2 V	28.8 V
Phoenix Contact 2905491			DC	GOST	Socketable	Plug In	5 A	-20 C	60 °C	Module			24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
