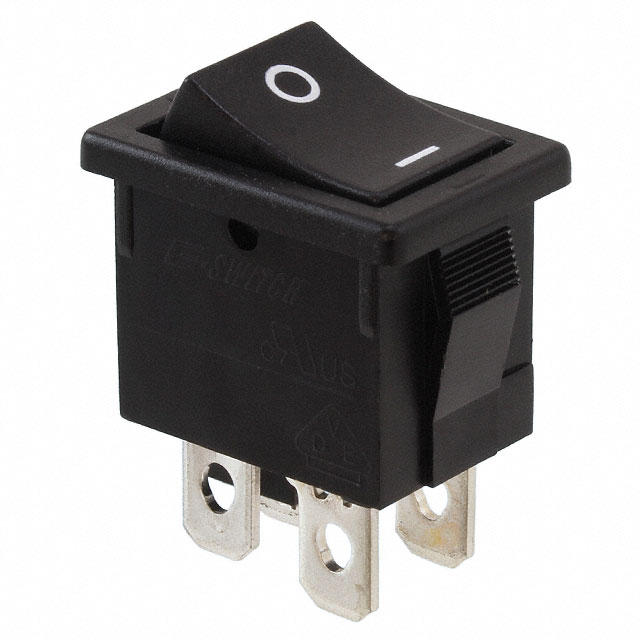

R1973BBLKBLKGF0

Active

E-Switch

SWITCH ROCKER DPST 9A 125V

Deep-Dive with AI

Search across all available documentation for this part.

R1973BBLKBLKGF0

Active

E-Switch

SWITCH ROCKER DPST 9A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1973BBLKBLKGF0

Actuator Marking	O I
Actuator Type	Concave (Curved)
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	9 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

R1973BBL Series

Part	Actuator Marking	Actuator Type	Circuit	Illumination Type, Color	Mounting Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Current Rating (Amps)	Termination Style	Color - Actuator/Cap	Voltage Rating - AC	Illumination Voltage (Nominal)	Mechanical Life
E-Switch R1973BBLKGILGF6	O I	Concave (Curved) - Illuminated	DPST	Green Incandescent	Panel Mount Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	Quick Connect - 0.187" (4.7mm)	Green	125 V	6 V	30000 Steps
E-Switch R1973BBLKRILEF1	No Marking	Concave (Curved) - Illuminated	DPST	Neon Red	Panel Mount Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	Quick Connect - 0.187" (4.7mm)	Red	125 V	125 VAC	30000 Steps
E-Switch R1973BBLKBLKIL0	ON OFF Vertical	Concave (Curved)	DPST		Panel Mount Right Angle Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	PC Pin	Black	125 V		30000 Steps
E-Switch R1973BBLKRILAF2	Dot	Concave (Curved) - Illuminated	DPST	Neon Red	Panel Mount Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	Quick Connect - 0.187" (4.7mm)	Red	125 V	250 VAC	30000 Steps
E-Switch R1973BBLKWHTFF0	O -	Concave (Curved)	DPST		Panel Mount Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	Quick Connect - 0.187" (4.7mm)	White	125 V		30000 Steps
E-Switch R1973BBLKRILKF1	O on End	Concave (Curved) - Illuminated	DPST	Neon Red	Panel Mount Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	Quick Connect - 0.187" (4.7mm)	Red	125 V	125 VAC	30000 Steps
E-Switch R1973BBLKBLKER0	No Marking	Concave (Curved)	DPST		Panel Mount Right Angle Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	PC Pin	Black	125 V		30000 Steps
E-Switch R1973BBLKBLKGL0	O I	Concave (Curved)	DPST		Panel Mount Right Angle Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	PC Pin	Black	125 V		30000 Steps
E-Switch R1973BBLKBLKGF0	O I	Concave (Curved)	DPST		Panel Mount Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	Quick Connect - 0.187" (4.7mm)	Black	125 V		30000 Steps
E-Switch R1973BBLKGILIF2	ON OFF Vertical	Concave (Curved) - Illuminated	DPST	Green Neon	Panel Mount Snap-In	On-Off	65 °C	-30 ░C	10000 Cycles	9 A	Quick Connect - 0.187" (4.7mm)	Green	125 V	250 VAC	30000 Steps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.31
		10	$ 1.99
		25	$ 1.88
		50	$ 1.80
		100	$ 1.72
		250	$ 1.62
		500	$ 1.55
		1000	$ 1.48

Description

General part information

R1973BBL Series

Rocker Switch DPST 9A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
