924717-10-03-I

Obsolete

3M (TC)

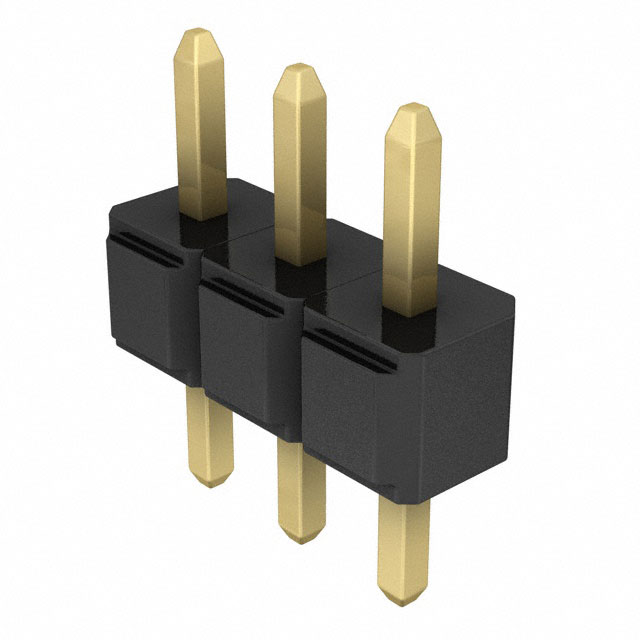

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

924717-10-03-I

Obsolete

3M (TC)

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	924717-10-03-I

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

924717 Series

Part	Insulation Material	Material Flammability Rating	Contact Type	Fastening Type	Shrouding	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Current Rating (Amps)	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Rows	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Insulation Height	Insulation Height	Number of Positions
3M (TC) 924717-10-14-EU	Polycyclohexylenedimethylene Terephthalate (PCT)	UL94 V-0	Male Pin	Push-Pull	Unshrouded	Through Hole	0.11 in	2.79 mm	Copper Alloy	10 çin	0.25 çm	0.1 in	2.54 mm	14	2.5 A	Black	Breakaway Header	-40 °C	105 ░C	Gold	Solder	10 çin	0.25 çm	Square	1	All	0.125 in	3.18 mm	8.51 mm	0.335 in	Gold	0.1 in	2.54 mm
3M (TC) 924717-10-03-I	Glass Filled Polybutylene Terephthalate (PBT) Polyester	UL94 V-0	Male Pin	Push-Pull	Unshrouded	Through Hole	0.11 in	2.79 mm	Copper Alloy	10 çin	0.25 çm	0.1 in	2.54 mm		2.5 A	Black	Breakaway Header	-40 °C	105 ░C	Gold	Solder	10 çin	0.25 çm	Square	1	All	0.125 in	3.18 mm	8.51 mm	0.335 in	Gold	0.1 in	2.54 mm
3M (TC) 924717-10-16-EU	Polycyclohexylenedimethylene Terephthalate (PCT)	UL94 V-0	Male Pin	Push-Pull	Unshrouded	Through Hole	0.11 in	2.79 mm	Copper Alloy	10 çin	0.25 çm	0.1 in	2.54 mm		2.5 A	Black	Breakaway Header	-40 °C	105 ░C	Gold	Solder	10 çin	0.25 çm	Square	1	All	0.125 in	3.18 mm	8.51 mm	0.335 in	Gold	0.1 in	2.54 mm	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

924717 Series

Connector Header Through Hole 3 position 0.100" (2.54mm)
