73404WS 0081000
ActiveBelden Inc.

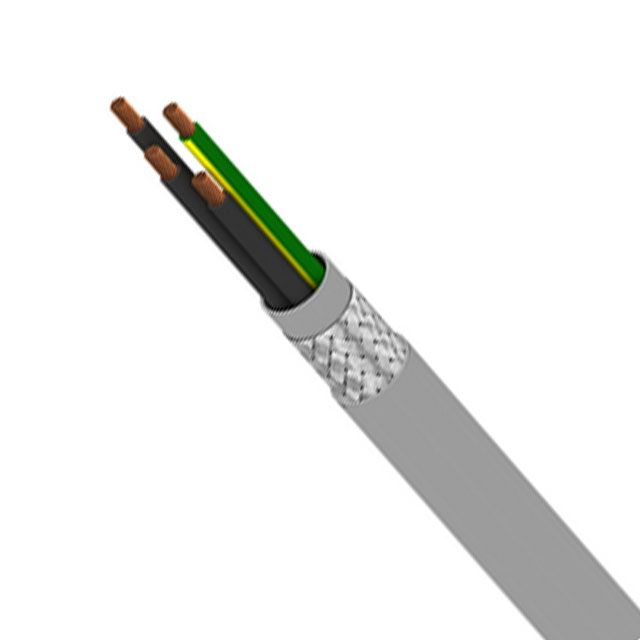

CABLE 4CON 14AWG GRAY SHLD FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 73404WS 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 41 |
| Conductor Strand [custom] | 30 AWG |
| Features | Oil Resistant |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 1.194 mm |
| Jacket (Insulation) Thickness | 0.047 in |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -5 °C |
| Ratings | UL Style 2587 |
| Shield Coverage | 85 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 600 V |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 5.61 | |
| 3 | $ 5.16 | |||
| 5 | $ 4.98 | |||
| 7 | $ 4.88 | |||
| 10 | $ 4.75 | |||
| 25 | $ 4.57 | |||
Description
General part information
73404WS Series
4 Conductor Multi-Conductor Cable Gray 14 AWG Braid Enter Number of Feet in Order Quantity
