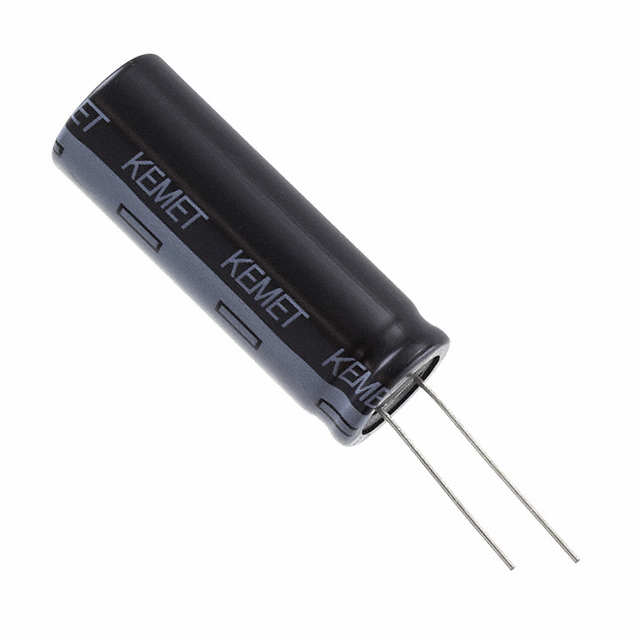

ESU107M450AN9AA

Active

KEMET

ELECTROLYTIC CAPACITOR, 100 ΜF, 450 V, ± 20%, PC PIN, 12000 HOURS @ 105°C, POLAR

Search across all available documentation for this part.

Active

KEMET

ELECTROLYTIC CAPACITOR, 100 ΜF, 450 V, ± 20%, PC PIN, 12000 HOURS @ 105°C, POLAR

Technical Specifications

Parameters and characteristics for this part

Specification	ESU107M450AN9AA

Applications	General Purpose
Capacitance	100 µF
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	12000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.56 A
Ripple Current @ Low Frequency	780 mA
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	450 V

Part	Capacitance	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Lifetime @ Temp.	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Mounting Type	Tolerance
KEMET ESU107M450AN9AA	100 µF	General Purpose	Radial Can	-25 °C	105 ░C	1.56 A	2.047 in	52 mm	450 V	12000 Hrs	Polar	0.709 "	18 mm	7.5 mm	0.295 in	780 mA	Through Hole	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
