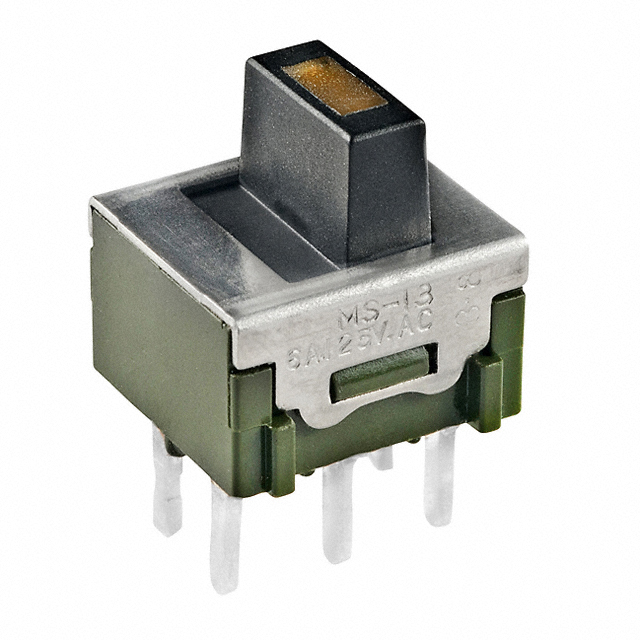

MS13LNW03E

Obsolete

NKK Switches

SWITCH SLIDE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH SLIDE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MS13LNW03E

Actuator Length [z]	5.1 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Illuminated
Circuit	SPDT
Contact Finish	Silver
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Switch Travel	3.5 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Circuit	Mounting Type	Switch Function	Switch Travel	Electrical Life	Contact Timing	Contact Material	Mechanical Life	Termination Style	Features	Actuator Type	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Actuator Length [z]	Voltage Rating - AC
NKK Switches MS13LNW03E	6 A	SPDT	Through Hole	On-Off-On	3.5 mm	25000 Steps	Non-Shorting	Silver Alloy	100000 Cycles	PC Pin	Epoxy Sealed Terminals	Illuminated	Polybutylene Terephthalate (PBT) Glass Filled	-30 ░C	85 °C	Silver	5.1 mm	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.09

General part information

Slide Switch SPDT Through Hole
