TLE42344GHTMA1

Infineon Technologies

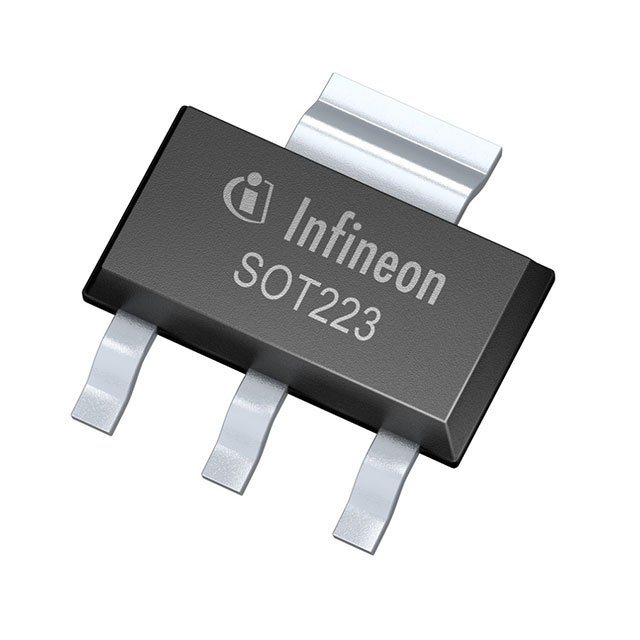

LDO, FIXED, 5V, 0.1A, SOT-223-4 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Infineon Technologies

LDO, FIXED, 5V, 0.1A, SOT-223-4 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TLE42344GHTMA1

Control Features	Enable
Current - Output	100 mA
Current - Quiescent (Iq)	400 µA
Current - Supply (Max) [Max]	15 mA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-261AA, TO-261-4
Protection Features	Over Temperature, Reverse Polarity, Over Current
PSRR	54 dB
Qualification	AEC-Q100
Supplier Device Package	PG-SOT223-4
Voltage - Input (Max) [Max]	45 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.5 V

Part	Qualification	Package / Case	Voltage Dropout (Max) [Max]	PSRR	Number of Regulators	Voltage - Output (Min/Fixed)	Output Configuration	Current - Output	Mounting Type	Current - Supply (Max) [Max]	Protection Features	Output Type	Control Features	Current - Quiescent (Iq)	Grade	Supplier Device Package	Voltage - Input (Max) [Max]
Infineon Technologies TLE42344GHTMA1	AEC-Q100	TO-261-4 TO-261AA	0.5 V	54 dB	1	5 V	Positive	100 mA	Surface Mount	15 mA	Over Current Over Temperature Reverse Polarity	1.81 mOhm	Enable	400 µA	Automotive	PG-SOT223-4	45 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.59
	Digi-Reel®	1	$ 1.59
	Tape & Reel (TR)	4000	$ 0.68
		8000	$ 0.64
		12000	$ 0.62
Newark	Each (Supplied on Cut Tape)	1	$ 1.49

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 100mA PG-SOT223-4
