IXTA270N04T4-7

Obsolete

IXYS

TRANSISTOR: N-MOSFET; UNIPOLAR; 40V; 270A; 375W; TO263-7; 48NS

Search across all available documentation for this part.

Obsolete

IXYS

TRANSISTOR: N-MOSFET; UNIPOLAR; 40V; 270A; 375W; TO263-7; 48NS

Technical Specifications

Parameters and characteristics for this part

Specification	IXTA270N04T4-7

Current - Continuous Drain (Id) @ 25°C	270 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	182 nC
Input Capacitance (Ciss) (Max) @ Vds	9140 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

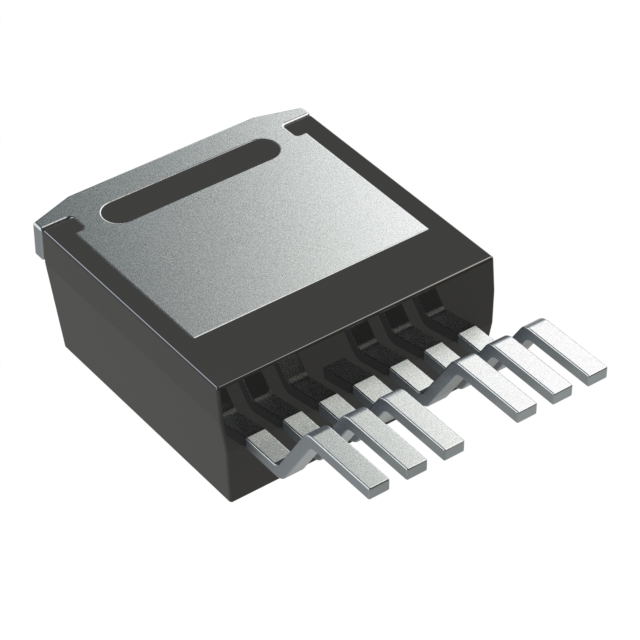

Package / Case	TO-263-7, D2PAK
Power Dissipation (Max) [Max]	375 W
Rds On (Max) @ Id, Vgs	2.2 mOhm
Supplier Device Package	TO-263-7 (IXTA)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	15 V
Vgs(th) (Max) @ Id	4 V

Part	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Rds On (Max) @ Id, Vgs	Supplier Device Package	FET Type	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Technology	Mounting Type
IXYS IXTA270N04T4-7	10 V	D2PAK TO-263-7	2.2 mOhm	TO-263-7 (IXTA)	N-Channel	375 W	182 nC	9140 pF	-55 °C	175 ░C	270 A	15 V	4 V	40 V	MOSFET (Metal Oxide)	Surface Mount
IXYS IXTA270N04T4	10 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2.2 mOhm	TO-263AA	N-Channel	375 W	182 nC	9140 pF	-55 °C	175 ░C	270 A	15 V	4 V	40 V	MOSFET (Metal Oxide)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 40 V 270A (Tc) 375W (Tc) Surface Mount TO-263-7 (IXTA)
