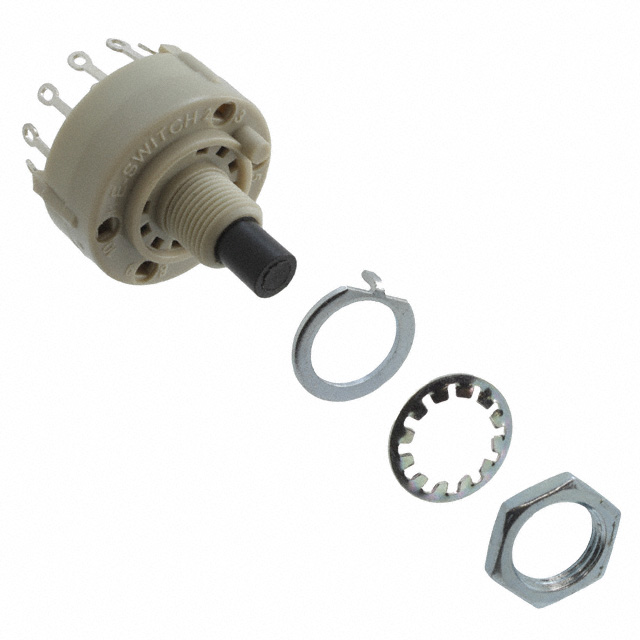

KC34B7.001NLS

Active

E-Switch

SWITCH ROTARY 4POS 350MA 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROTARY 4POS 350MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KC34B7.001NLS

Actuator Length [x]	7 mm
Actuator Type	Round
Actuator Type [diameter]	6 mm
Angle of Throw	30 °
Circuit per Deck	3P4T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	350 mA
Depth Behind Panel [z]	18.5 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	3
Number of Positions	4
Panel Cutout Dimensions [diameter]	9.8 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Termination Style	Actuator Type [diameter]	Actuator Type	Number of Decks [custom]	Current Rating (Amps)	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Number of Poles per Deck	Contact Material	Index Stops	Circuit per Deck	Actuator Length [x]	Contact Timing	Angle of Throw	Number of Positions	Depth Behind Panel [z]	Contact Finish
E-Switch KC34B7.001NLS	Solder Lug	6 mm	Round	1	350 mA	125 V	9.8 mm	3	Copper Alloy	Fixed	3P4T	7 mm	Non-Shorting	30 °	4	18.5 mm	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 4 Position 3P4T 350mA (AC) 125 VAC Panel Mount
