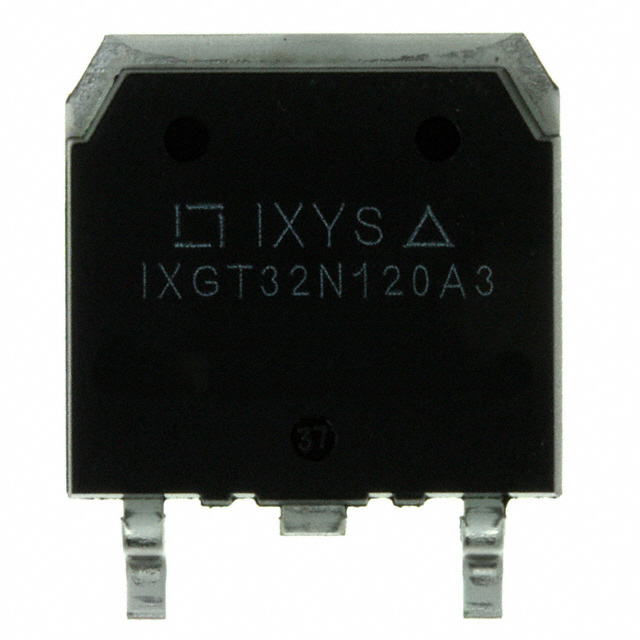

IXGT32N120A3

Active

IXYS

TRANSISTOR: IGBT; GENX3™; 1.2KV; 32A; 300W; TO268

Search across all available documentation for this part.

Active

IXYS

TRANSISTOR: IGBT; GENX3™; 1.2KV; 32A; 300W; TO268

Technical Specifications

Parameters and characteristics for this part

Specification	IXGT32N120A3

Current - Collector (Ic) (Max) [Max]	75 A
Current - Collector Pulsed (Icm)	230 A
Gate Charge	89 nC
IGBT Type	PT
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
Power - Max [Max]	300 W
Supplier Device Package	TO-268AA
Vce(on) (Max) @ Vge, Ic	2.35 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Test Condition	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Reverse Recovery Time (trr)	Switching Energy	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Current - Collector Pulsed (Icm)	Gate Charge	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type	Td (on/off) @ 25°C
IXYS IXGT32N90B2D1	5 Ohm 15 V 32 A 720 V	20 ns	260 ns	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	900 V	190 ns	2.2 mJ	2.7 V	TO-268AA	200 A	89 nC	Surface Mount	-55 °C	150 °C	64 A	300 W
IXYS IXGT32N60BD1	4.7 Ohm 15 V 32 A 480 V	25 ns	100 ns	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA		25 ns	600 µJ	2.3 V	TO-268AA	120 A	110 nC	Surface Mount	-55 °C	150 °C	60 A	200 W	600 V
IXYS IXGT32N170-TRL	2.7 Ohm 15 V 32 A 1020 V	45 ns	270 ns	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1700 V		11 mJ	3.3 V	TO-268AA	200 A	155 nC	Surface Mount	-55 °C	150 °C	75 A	350 W		NPT
IXYS IXGT32N170A	2.7 Ohm 15 V 32 A 850 V			D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1700 V		1.5 mJ	5 V	TO-268AA	110 A	155 nC	Surface Mount	-55 °C	150 °C	32 A	350 W		NPT	46 ns 260 ns
IXYS IXGT32N170	2.7 Ohm 15 V 32 A 1020 V	45 ns	270 ns	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1700 V		11 mJ	3.3 V	TO-268AA	200 A	155 nC	Surface Mount	-55 °C	150 °C	75 A	350 W		NPT
IXYS IXGT32N120A3				D3PAK (2 Leads + Tab) TO-268-3 TO-268AA				2.35 V	TO-268AA	230 A	89 nC	Surface Mount	-55 °C	150 °C	75 A	300 W	1200 V	PT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT PT 1200 V 75 A 300 W Surface Mount TO-268AA
