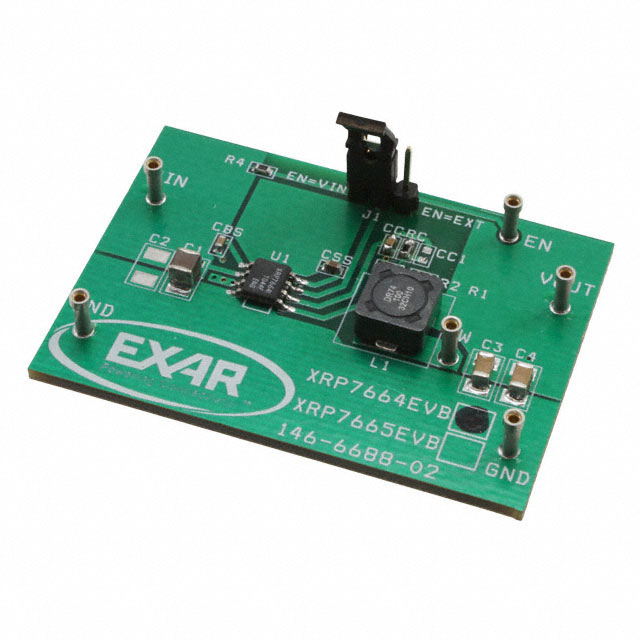

XRP7664EVB

Active

MaxLinear, Inc.

EVAL BOARD FOR XRP7664

Search across all available documentation for this part.

Active

MaxLinear, Inc.

EVAL BOARD FOR XRP7664

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.56

General part information

XRP7664 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

EVAL BOARD FOR XRP7664

Part	Outputs and Type	Outputs and Type	Regulator Topology	Main Purpose	Voltage - Output	Board Type	Frequency - Switching	Utilized IC / Part	Current - Output	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Synchronous Rectifier	Mounting Type	Output Configuration	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Package / Case	Package / Case [y]	Package / Case [x]	Function	Supplier Device Package	Voltage - Output (Max)	Voltage - Input (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Number of Outputs
MaxLinear, Inc. XRP7664EVB	Non-Isolated	1	Buck	DC/DC, Step Down	3.3 V	Fully Populated	340 kHz	XRP7664	2 A	Board(s)	4.75 V	18 V
MaxLinear, Inc. XRP7664IDTR-F							340 kHz		2 A					Surface Mount	Positive	4.5 V	0.925 V	8-SOIC	3.9 mm	0.154 in	Step-Down	8-SOIC	16 V	18 V	Adjustable	85 °C	-40 °C	Buck	1
