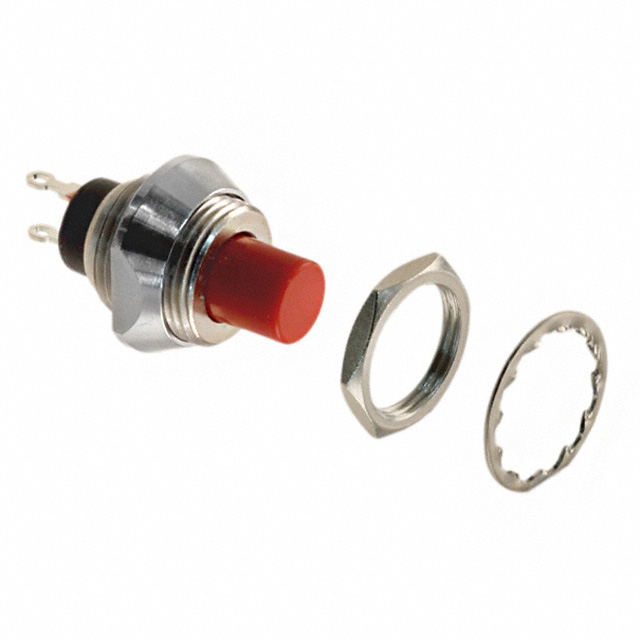

MSPF101C

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 500MA 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 500MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MSPF101C

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	500 mA
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.8 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Termination Style	Voltage Rating - AC	Mounting Type	Panel Cutout Dimensions [diameter]	Circuit	Switch Function	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Actuator Marking	Color - Actuator/Cap	Current Rating (Amps)	Type
TE Connectivity Raychem Cable Protection MSPF101C	Solder Lug	125 V	Panel Mount Rear	11.8 mm	SPST-NO	Off-Mom	10000 Cycles	-20 C	80 C	Button Round	No Marking	Red	500 mA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
