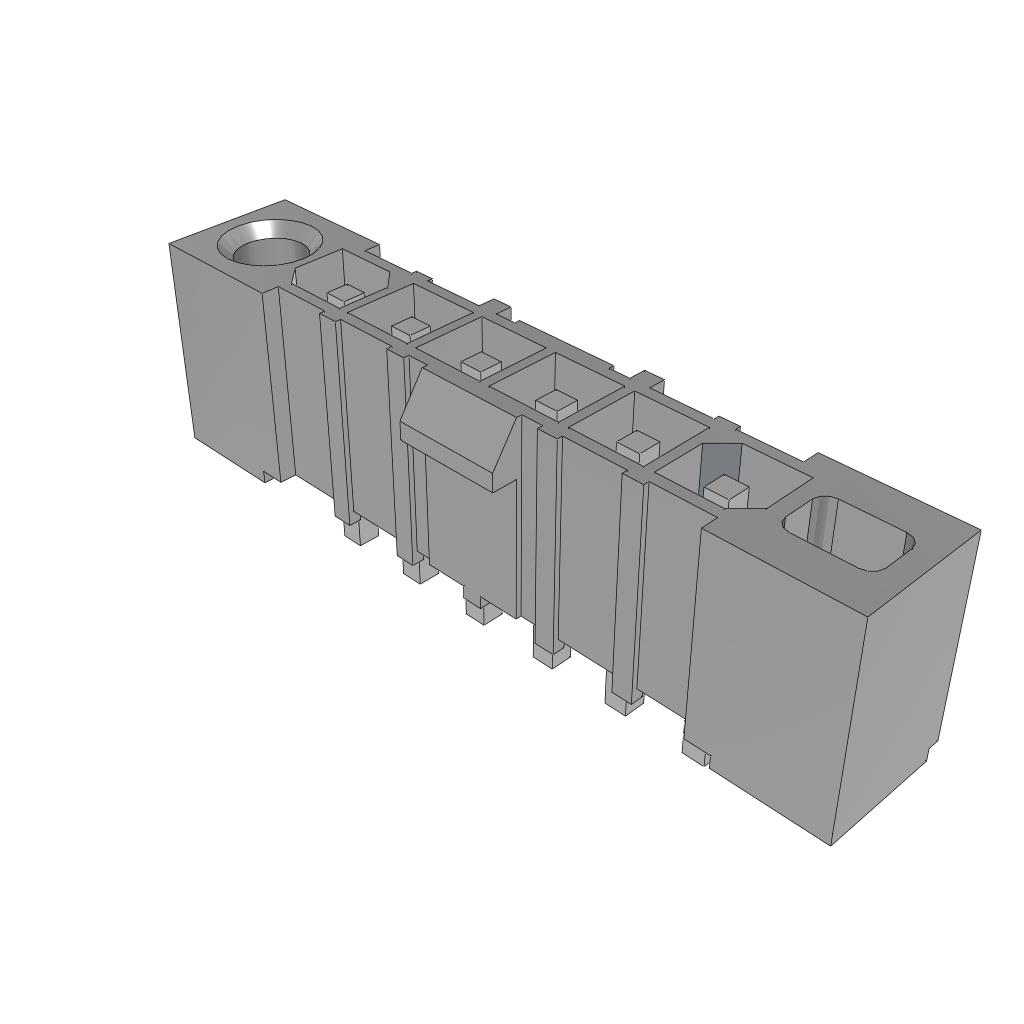

IPBT-106-H1-T-S-GP
ActiveSamtec Inc.
POWER TO THE BOARD .165" POWER MATE ISOLATED POWER TERMINAL HEADER
Deep-Dive with AI
Search across all available documentation for this part.
IPBT-106-H1-T-S-GP
ActiveSamtec Inc.
POWER TO THE BOARD .165" POWER MATE ISOLATED POWER TERMINAL HEADER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPBT-106-H1-T-S-GP |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating [custom] | 6.6 mm |
| Contact Length - Mating [custom] | 0.26 in |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Mating Flange |
| Insulation Color | Black |
| Insulation Height | 0.38 in |
| Insulation Height | 9.65 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 400 VAC, 565 VDC |
IPBT-106 Series
Power to the Board .165" Power Mate Isolated Power Terminal Header
| Part | Contact Material | Mounting Type | Fastening Type | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Features | Insulation Material | Contact Shape | Connector Type | Number of Positions | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Number of Positions Loaded | Insulation Color | Material Flammability Rating | Insulation Height | Insulation Height | Style | Pitch - Mating | Pitch - Mating | Voltage Rating | Termination | Contact Finish - Post | Contact Type | Contact Length - Post | Contact Length - Post | Overall Contact Length | Overall Contact Length | Row Spacing - Mating | Row Spacing - Mating | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Copper Alloy | Through Hole | Locking Ramp | Shrouded - 4 Wall | 105 ░C | -55 °C | 1 | Mating Flange | Liquid Crystal Polymer (LCP) | Square | Header | 6 | 6.6 mm | 0.26 in | All | Black | UL94 V-0 | 0.38 in | 9.65 mm | Board to Board Cable | 4.2 mm | 0.165 in | 400 VAC 565 VDC | Solder | Tin | Male Pin | 0.13 in | 3.3 mm | ||||||
Samtec Inc. | Copper Alloy | Through Hole | Locking Ramp | Shrouded - 4 Wall | 105 ░C | -55 °C | 2 | Liquid Crystal Polymer (LCP) | Square | Header | 12 | 6.6 mm | 0.26 in | All | Black | UL94 V-0 | 0.789 in | 20.04 mm | Board to Board Cable | 4.2 mm | 0.165 in | 400 VAC 565 VDC | Solder | Tin | Male Pin | 0.13 in | 3.3 mm | 22.71 mm | 0.894 in | 4.2 mm | 0.165 in | |||
Samtec Inc. | Copper Alloy | Through Hole | Locking Ramp | Shrouded - 4 Wall | 105 ░C | -55 °C | 2 | Mating Flange | Liquid Crystal Polymer (LCP) | Square | Header | 12 | 6.6 mm | 0.26 in | All | Black | UL94 V-0 | 0.789 in | 20.04 mm | Board to Board Cable | 4.2 mm | 0.165 in | 400 VAC 565 VDC | Solder | Tin | Male Pin | 0.13 in | 3.3 mm | 22.71 mm | 0.894 in | 4.2 mm | 0.165 in | ||
Samtec Inc. | Copper Alloy | Surface Mount | Locking Ramp | Shrouded - 4 Wall | 105 ░C | -55 °C | 2 | Mating Flange | Liquid Crystal Polymer (LCP) | Square | Header | 12 | 6.6 mm | 0.26 in | All | Black | UL94 V-0 | 0.38 in | 9.65 mm | Board to Board Cable | 4.2 mm | 0.165 in | 400 VAC 565 VDC | Solder | Tin | Male Pin | 4.2 mm | 0.165 in | ||||||
Samtec Inc. | Copper Alloy | Through Hole Right Angle | Locking Ramp | Shrouded - 4 Wall | 105 ░C | -55 °C | 2 | Mating Flange | Liquid Crystal Polymer (LCP) | Square | Header | 12 | 6.6 mm | 0.26 in | All | Black | UL94 V-0 | Board to Board Cable | 4.2 mm | 0.165 in | 400 VAC 565 VDC | Solder | Tin | Male Pin | 0.147 in | 3.73 mm | 4.2 mm | 0.165 in | 10.77 mm | 0.424 in | ||||
Samtec Inc. | Copper Alloy | Through Hole | Locking Ramp | Shrouded - 4 Wall | 105 ░C | -55 °C | 2 | Mating Flange | Liquid Crystal Polymer (LCP) | Square | Header | 12 | 6.6 mm | 0.26 in | All | Black | UL94 V-0 | 0.38 in | 9.65 mm | Board to Board Cable | 4.2 mm | 0.165 in | 400 VAC 565 VDC | Solder | Tin | Male Pin | 0.13 in | 3.3 mm | 4.2 mm | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IPBT-106 Series
Power to the Board .165" Power Mate Isolated Power Terminal Header
