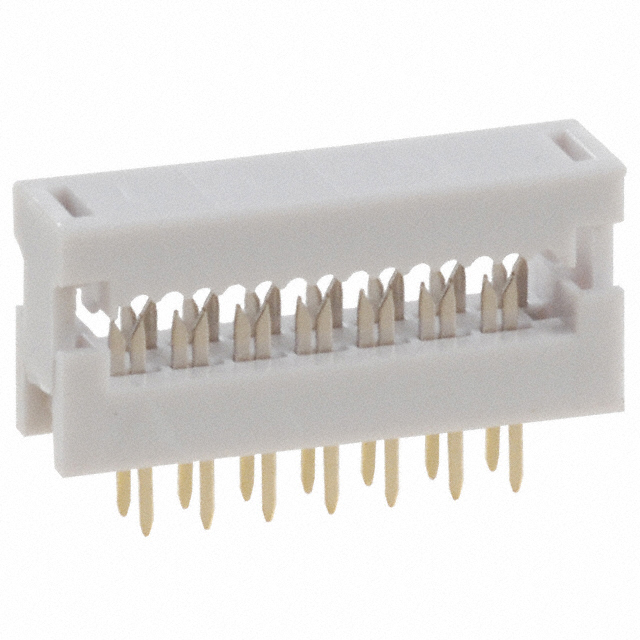

AWLP 14/3,2-T

Active

Assmann WSW Components

CONN DIP HDR IDC 14POS VERT

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN DIP HDR IDC 14POS VERT

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Number of Positions Loaded	Cable Termination	Number of Positions	Connector Type	Mounting Type	Features	Color	Board-Side Pitch	Board-Side Pitch	Row Spacing [x]	Row Spacing	Cable Pitch	Cable Pitch	Contact Finish
Assmann WSW Components AWLP-14/3.2-T-R	2	All	IDC	14	DIP Header Ribbon Cable	Through Hole	Feed Through	Gray	0.1 in	2.54 mm	0.1 in	2.54 mm	1.27 mm	0.05 in	Tin
Assmann WSW Components AWLP 14/3,2-T	2	All	IDC	14	DIP Header Ribbon Cable	Through Hole	Feed Through	Gray	0.1 in	2.54 mm	0.1 in	2.54 mm	1.27 mm	0.05 in	Tin
Assmann WSW Components AWLP 14/3,2-G	2	All	IDC	14	DIP Header Ribbon Cable	Through Hole	Feed Through	Gray	0.1 in	2.54 mm	0.1 in	2.54 mm	1.27 mm	0.05 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	144	$ 0.43

General part information

14 Position Ribbon Cable, DIP Header Connector Gray IDC Through Hole
