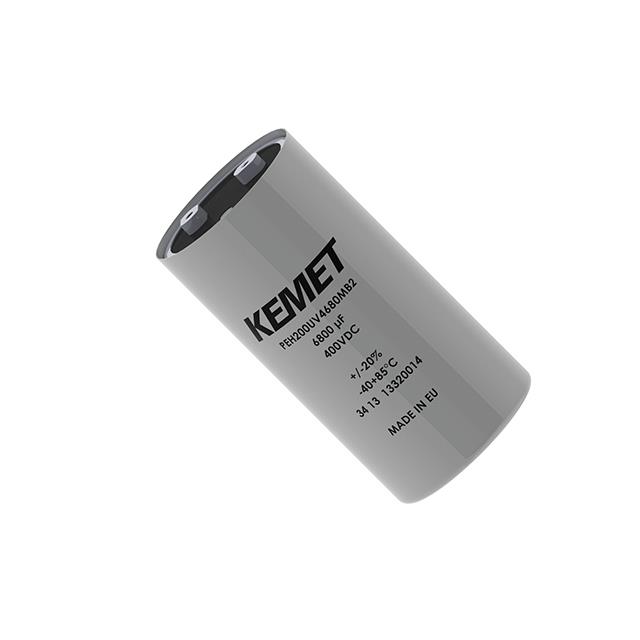

PEH200MO5330MB2

Active

KEMET

CAP ALUM SCRW TERM 85C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPEH200MO5330MB2 Spec Datasheet

PEH200MO5330MB2

Active

KEMET

CAP ALUM SCRW TERM 85C

Deep-Dive with AI

DocumentsPEH200MO5330MB2 Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEH200MO5330MB2

Applications	General Purpose
Capacitance	33000 µF
ESR (Equivalent Series Resistance)	10 mOhm
Height - Seated (Max) [Max]	107 mm
Height - Seated (Max) [Max]	4.213 in
Lead Spacing	1.122 in
Lead Spacing	28.5 mm
Lifetime @ Temp.	15000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ High Frequency	34.8 A
Ripple Current @ Low Frequency	22.8 A
Size / Dimension [diameter]	66.6 mm
Size / Dimension [diameter]	2.622 in
Tolerance	20 %
Voltage - Rated	63 V

PEH200M Series

Part	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Rated	Package / Case	Polarization	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Tolerance	Lifetime @ Temp.	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET PEH200MJ5220MB2	0.866 in	22 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	10 mOhm	19 A	20 %	12000 Hrs	General Purpose	51.6 mm	2.032 "	3.799 "	96.5 mm	8 mOhms	22000 µF
KEMET PEH200MC4680MU2	0.512 in	13 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	21 mOhm	11.5 A	20 %	10000 Hrs	General Purpose	36.6 mm	1.441 in	2.894 in	73.5 mm		6800 µF	23.5 A
KEMET PEH200MO5330MB2	1.122 in	28.5 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	10 mOhm	22.8 A	20 %	15000 Hrs	General Purpose	66.6 mm	2.622 in				33000 µF	34.8 A	107 mm	4.213 in
KEMET PEH200MA4470MB2	0.512 in	13 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	32 mOhm	9 A	20 %	10000 Hrs	General Purpose	36.6 mm	1.441 in	2.067 in	52.5 mm	21 mOhms	4700 µF
KEMET PEH200MJ5220MU2	1.122 in	28.5 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	10 mOhm	19 A	20 %	12000 Hrs	General Purpose	51.6 mm	2.031 in	3.76 in	95.5 mm		22000 µF	30.9 A
KEMET PEH200MD5100MB2	0.512 in	13 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	15 mOhm	13.6 A	20 %	10000 Hrs	General Purpose	36.6 mm	1.441 in	3.76 in	95.5 mm	10 mOhms	10000 µF
KEMET PEH200MD5100MU2	0.512 in	13 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	15 mOhm	13.6 A	20 %	10000 Hrs	General Purpose	36.6 mm	1.441 in	3.72 in	94.5 mm		10000 µF	27 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	96	$ 50.42

Description

General part information

PEH200M Series

33 mF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 10mOhm @ 100Hz 15000 Hrs @ 85°C

Documents

Technical documentation and resources

PEH200MO5330MB2 Spec

Datasheet
