R112303000

Active

Radiall USA, Inc.

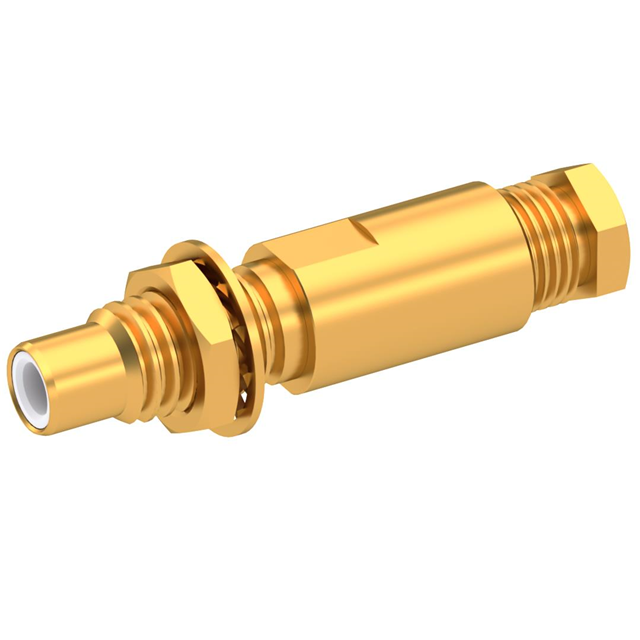

SMC / STRAIGHT BULKHEAD JACK CLA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT BULKHEAD JACK CLA

Technical Specifications

Parameters and characteristics for this part

Specification	R112303000

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	250 VDC

Part	Shield Termination	Connector Style	Number of Ports	Dielectric Material	Center Contact Plating	Impedance	Connector Type	Voltage Rating	Housing Color	Body Finish	Mounting Feature	Center Contact Material	Body Material	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Contact Termination	Mating Cycles	Cable Group
Radiall USA, Inc. R112305000	Clamp	SMC	1	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Jack Male Pin	335 V	Gold	Gold	Bulkhead - Front Side Nut	Brass	Brass	187 188 316 RG-179	-65 ░C	165 °C	10 GHz	Solder	500
Radiall USA, Inc. R112303000	Clamp	SMC	1	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Jack Male Pin	250 VDC	Gold	Gold	Bulkhead - Front Side Nut	Brass	Brass	RG-178	-55 °C	100 °C	10 GHz	Solder	500	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 37.27

General part information

SMC Connector Jack, Male Pin 50 Ohms Panel Mount Solder
