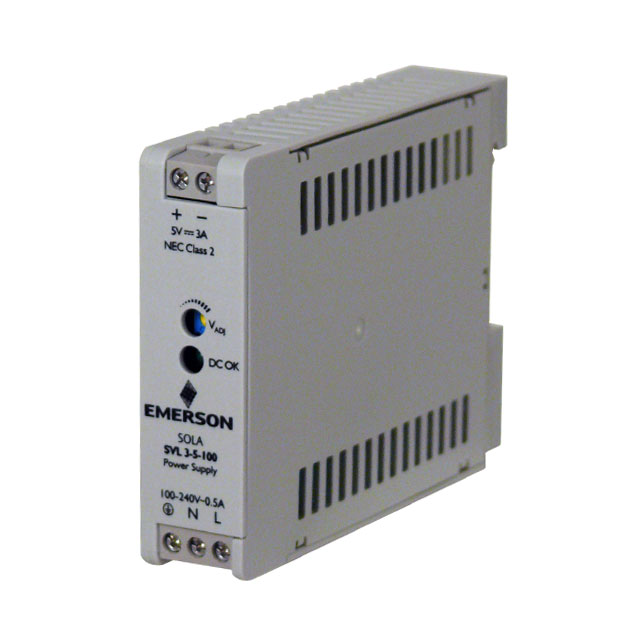

SVL35100
ActiveSolaHD
AC/DC DIN RAIL SUPPLY 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
SVL35100
ActiveSolaHD
AC/DC DIN RAIL SUPPLY 5V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SVL35100 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE, cURus, cULus |
| Current - Output (Max) [Max] | 3 A |
| DC Voltage - Input (Max) [Max] | 375 V |
| DC Voltage - Input (Min) [Min] | 120 V |
| Efficiency | 79 % |
| Features | Universal Input |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 89.4 mm |
| Size / Dimension [x] | 3.52 " |
| Size / Dimension [y] | 0.82 " |
| Size / Dimension [y] | 20.8 mm |
| Size / Dimension [z] | 2.95 " |
| Size / Dimension [z] | 74.9 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.65 | |
| 10 | $ 45.17 | |||
| 25 | $ 44.48 | |||
| 50 | $ 43.09 | |||
| 100 | $ 40.31 | |||
| 250 | $ 36.97 | |||
Description
General part information
SVL351 Series
AC/DC DIN RAIL SUPPLY 5V 15W
