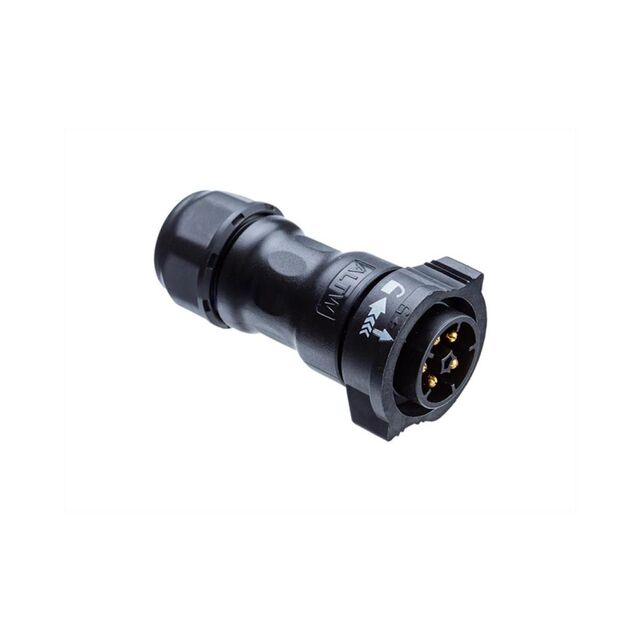

DC-02BFMA-QL8LPP

Active

Amphenol LTW

X-LOK, LARGE SIZE, PLASTIC, 20A, 02 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, PUSH LOCK, CRIMP, FIELD INSTALLABLE, 12.0 -

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, LARGE SIZE, PLASTIC, 20A, 02 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, PUSH LOCK, CRIMP, FIELD INSTALLABLE, 12.0 -

Technical Specifications

Parameters and characteristics for this part

Specification	DC-02BFMA-QL8LPP

Cable Opening [Max] [custom]	14 mm
Cable Opening [Max] [custom]	0.551 in
Cable Opening [Min] [custom]	12 mm
Cable Opening [Min] [custom]	0.472 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VAC

Part	Orientation	Insert Material	Number of Positions	Mounting Type	Contact Finish - Mating	Voltage Rating	Shielding	Ingress Protection	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Current Rating (Amps)	Fastening Type	Primary Material	Material Flammability Rating	Shell Size - Insert	Connector Type	Features	Housing Color	Contact Shape	Contact Type	Note	Type
Amphenol LTW DC-02BFMA-QL8LPP	Keyed	Polyamide (PA) Nylon Glass Filled	2	Free Hanging (In-Line)	Gold	300 VAC	Unshielded	IP68 - Dust Tight Waterproof	Crimp	-40 °C	105 ░C	Copper Alloy	Glass Filled Nylon Polyamide (PA)	12 mm	14 mm	0.472 in	0.551 in	Black	20 A	Push-Pull	Plastic	UL94 V-0	D	Male Pins Plug	Backshell
Amphenol LTW DC-02BFMA-QL8SNP	Keyed	Thermoplastic	2	Free Hanging (In-Line)			Unshielded	IP68 - Dust Tight Waterproof		-40 °C	105 ░C										Plastic		D	Plug Housing	Backshell	Black	Circular	Crimp	Contacts Not Included	For Male Pins
Amphenol LTW DC-02BFMA-QL8MNP	Keyed	Thermoplastic	2	Free Hanging (In-Line)			Unshielded	IP68 - Dust Tight Waterproof		-40 °C	105 ░C										Plastic		D	Plug Housing	Backshell	Black	Circular	Crimp	Contacts Not Included	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Plug, Male Pins Crimp
