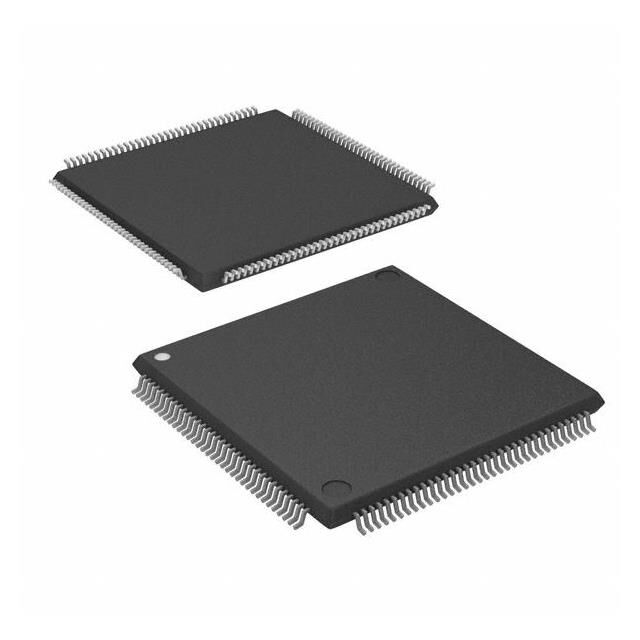

S6E2GK6H0AGV2000A

Active

Infineon Technologies

IC MCU 32BIT 512KB FLASH 144LQFP

Search across all available documentation for this part.

Active

Infineon Technologies

IC MCU 32BIT 512KB FLASH 144LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	S6E2GK6H0AGV2000A

Connectivity	SD, SPI, SmartCard, LINbus, USB, UART/USART, I2C, CSIO, EBI/EMI
Core Processor	ARM® Cortex®-M4F
Core Size	32-Bit Single-Core
Data Converters [custom]	12
Data Converters [custom]	24
Mounting Type	Surface Mount
Number of I/O	121
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	144-LQFP
Program Memory Size	512 KB
Program Memory Type	FLASH
RAM Size	128 K
Speed	180 MHz
Supplier Device Package	144-LQFP (20x20)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	Mounting Type	Program Memory Type	Core Size	Supplier Device Package	Data Converters [custom]	Data Converters [custom]	RAM Size	Speed	Number of I/O	Connectivity	Program Memory Size	Core Processor	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
Infineon Technologies S6E2GK6H0AGV2000A	Surface Mount	FLASH	32-Bit Single-Core	144-LQFP (20x20)	12	24	128 K	180 MHz	121	CSIO EBI/EMI I2C LINbus SD SmartCard SPI UART/USART USB	512 KB	ARM® Cortex®-M4F	-40 °C	125 °C	144-LQFP	Internal	2.7 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ARM® Cortex®-M4F FM4 S6E2GK Microcontroller IC 32-Bit Single-Core 180MHz 512KB (512K x 8) FLASH 144-LQFP (20x20)
