2263117

Active

Phoenix Contact

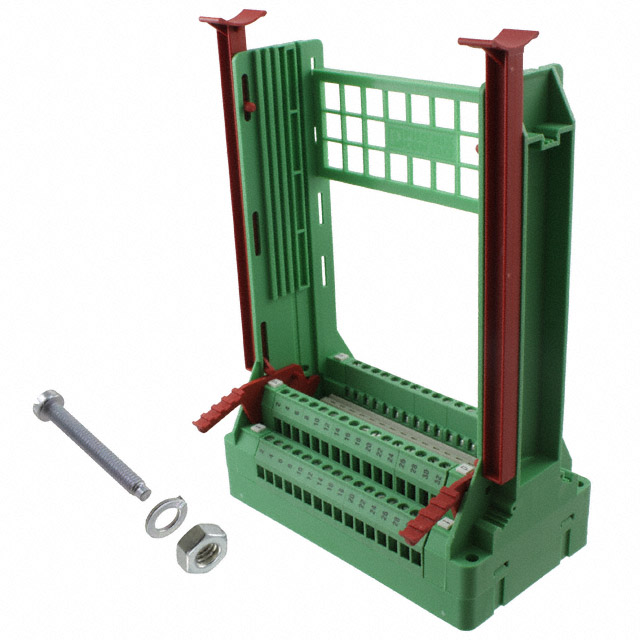

PLUG-IN CARD BLOCK 64POS 4A

Search across all available documentation for this part.

Active

Phoenix Contact

PLUG-IN CARD BLOCK 64POS 4A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Terminal Blocks, Screw Connection, 64 Pos, 4 Rows To Card Edge Connector, 64 Pos

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2263117	SKBI Series

Convert From (Adapter End)	4 Rows, 64	2 - 64 Rows
Convert From (Adapter End)	Screw Connection, Terminal Blocks	Screw Connection, Terminal Blocks, Terminal Blocks, Screw Connection, 30 Pos, 2 Rows, 2 Rows, 15 Pos, 32 Pos, 48 Pos, 3 Rows
Convert To (Adapter End)	Card Edge Connector	Card Edge Connector
Convert To (Adapter End)	64 Pos	15 - 64 Pos
Mounting Type	Board Mounted	Board Mounted
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	12 AWG	10 - 12 AWG

PLUG-IN CARD BLOCK 64POS 4A

Part	Convert From (Adapter End)	Convert From (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)
Phoenix Contact 2264080	4 Rows, 64	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2269140		Terminal Blocks, Screw Connection, 30 Pos, 2 Rows	12 AWG	24 AWG	Board Mounted	Card Edge Connector	15 Pos
Phoenix Contact 2269153		15 Pos, 2 Rows, Screw Connection, Terminal Blocks	10 AWG	24 AWG	Board Mounted	Card Edge Connector	15 Pos
Phoenix Contact 2261096		2 Rows, 32 Pos, Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	32 Pin
Phoenix Contact 2265034	4 Rows, 64	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2264093		3 Rows, 48 Pos, Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2263036	4 Rows, 64	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2263117	4 Rows, 64	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	64 Pos
Phoenix Contact 2261038		2 Rows, 32 Pos, Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	32 Pin
Phoenix Contact 2201519	2 Rows, 31 Pos	Screw Connection, Terminal Blocks	12 AWG	24 AWG	Board Mounted	Card Edge Connector	31 Pos
