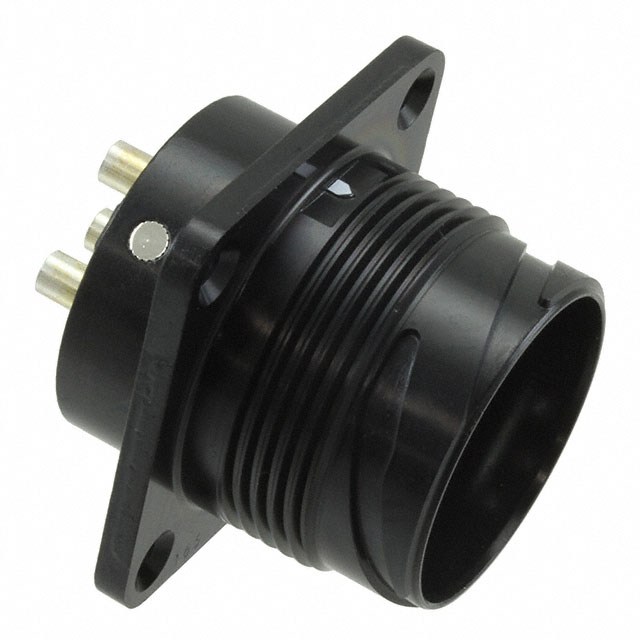

JL10-2E18-10PE

Active

JAE Electronics

CONN RCPT MALE 4P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT MALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JL10-2E18-10PE

Applications	Industrial, Test Equipment & Measurement, Communication Systems
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Fastening Type	Bayonet Lock, Threaded
Features	Ground
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Silicon Rubber
Mounting Feature	Flange
Number of Positions	4
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	18-10

Part	Shell Size - Insert	Mounting Feature	Connector Type	Orientation	Current Rating (Amps)	Applications	Number of Positions	Primary Material	Fastening Type	Color	Contact Finish - Mating	Shell Finish	Shell Material	Insert Material	Contact Material	Features	Ingress Protection
JAE Electronics JL10-2E18-10PE	18-10	Flange	Male Pins Receptacle	N	23 A	Communication Systems Industrial Test Equipment & Measurement	4	Metal	Bayonet Lock Threaded	Black	Silver	Zinc	Aluminum Alloy	Silicon Rubber	Copper Alloy	Ground	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
