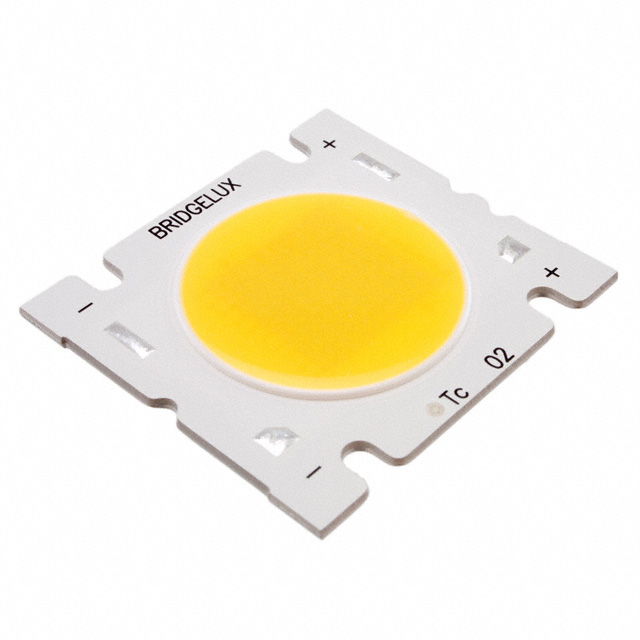

BXRA-40E7500-J-00

Obsolete

BRIDGELUX

LED COB RS NEUT WHT SQUARE 4000K

BXRA-40E7500-J-00

Obsolete

BRIDGELUX

LED COB RS NEUT WHT SQUARE 4000K

Description Specifications Series Pricing CAD Documents

Description

General part information

BXRA-40 Series

LED Lighting COBs Engines Modules Chip On Board (COB) RS White, Neutral Square

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-40E7500-J-00

CCT (K)	4000 K
CCT Description	7-Step MacAdam Ellipse
Color	White, Neutral
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max	3.5 A
Current - Test	2.8 A
Height	3 mm
Lens Type	Domed
Lumens/Watt	109 lm/W
Luminous Flux (Typical)	9010 lm
Size / Dimension Length	45.6 mm
Size / Dimension Width	2 in
Temperature - Test	25 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	29.4 V

BXRA-40 Series

Part	Color	Luminous Flux (Typical)	CCT (K)	CCT Description	Temperature - Test	Lens Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	Type	Size / Dimension Length	Size / Dimension Width	Configuration	Lumens/Watt	Current - Max	CRI (Color Rendering Index)	Current - Test	Height
BRIDGELUX BXRA-40E4500-H-03	Neutral White	5700 lm	4000 K	3-Step MacAdam Ellipse	25 °C	Domed	23.5 V	120 °	Chip On Board (COB)	45.6 mm	2 in	Square	116 lm/W	2.8 A	80	2.1 A	3 mm
BRIDGELUX BXRA-40E4000-F-00	Neutral White	3530 lm	4000 K	7-Step MacAdam Ellipse	25 °C	Domed	17.9 V	120 °	Chip On Board (COB)	45.6 mm	2 in	Square	113 lm/W	2.1 A	80	1.75 A	3 mm
BRIDGELUX BXRA-40E0600-A-03	Neutral White	680 lm	4000 K	3-Step MacAdam Ellipse	25 °C	Domed	18.2 V	120 °	Chip On Board (COB)	19.9 mm	19.9 mm	Starboard	107 lm/W	350 mA	80	350 mA	3 mm
BRIDGELUX BXRA-40E7500-J-03	Neutral White	9010 lm	4000 K	3-Step MacAdam Ellipse	25 °C	Domed	29.4 V	120 °	Chip On Board (COB)	45.6 mm	2 in	Square	109 lm/W	3.5 A	80	2.8 A	3 mm
BRIDGELUX BXRA-40E0810-A-03	Neutral White	1030 lm	4000 K	3-Step MacAdam Ellipse	25 °C	Domed	27.3 V	120 °	Chip On Board (COB)	19.9 mm	19.9 mm	Starboard	108 lm/W	350 mA	80	350 mA	3 mm
BRIDGELUX BXRA-40E2200-B-00	Neutral White	2750 lm	4000 K		25 °C	Domed	37 V	120 °	Chip On Board (COB)	22.8 mm	25.8 mm	Rectangle	106 lm/W	750 mA	80	700 mA	3 mm
BRIDGELUX BXRA-40E4000-F-03	Neutral White	3530 lm	4000 K	3-Step MacAdam Ellipse	25 °C	Domed	17.9 V	120 °	Chip On Board (COB)	45.6 mm	2 in	Square	113 lm/W	2.1 A	80	1.75 A	3 mm
BRIDGELUX BXRA-40E7500-J-00	Neutral White	9010 lm	4000 K	7-Step MacAdam Ellipse	25 °C	Domed	29.4 V	120 °	Chip On Board (COB)	45.6 mm	2 in	Square	109 lm/W	3.5 A	80	2.8 A	3 mm
BRIDGELUX BXRA-40E1350-B-03	Neutral White	1690 lm	4000 K	3-Step MacAdam Ellipse	25 °C	Domed	29.6 V	120 °	Chip On Board (COB)	22.8 mm	25.8 mm	Rectangle	114 lm/W	750 mA	80	500 mA	3 mm
BRIDGELUX BXRA-40E2200-B-03	Neutral White	2750 lm	4000 K	3-Step MacAdam Ellipse	25 °C	Domed	37 V	120 °	Chip On Board (COB)	22.8 mm	25.8 mm	Rectangle	106 lm/W	750 mA	80	700 mA	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

BXRA-40E7500-J-00 | Datasheet
