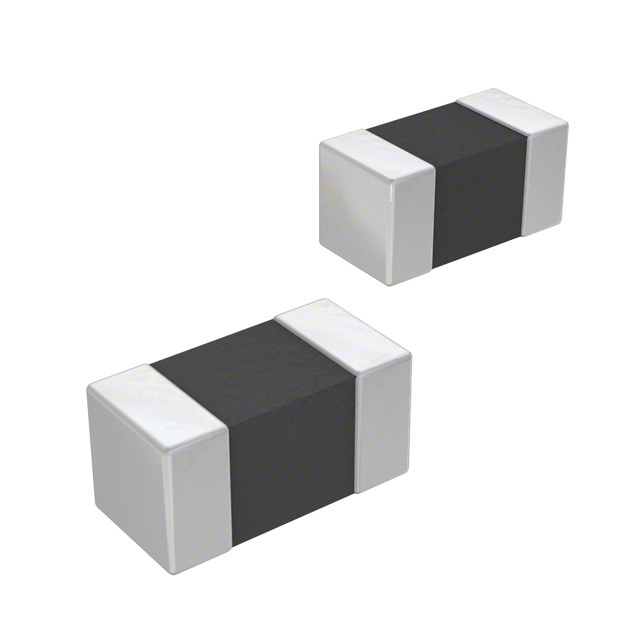

CG0402MLD-12G
ActiveBourns Inc.
VAR MLV 12VDC 50V 0402 SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CG0402MLD-12G
ActiveBourns Inc.
VAR MLV 12VDC 50V 0402 SMD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CG0402MLD-12G |
|---|---|
| Capacitance @ Frequency | 5 pF |
| Maximum DC Volts [Max] | 12 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 0402 (1005 Metric) |
| Varistor Voltage (Typ) | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.17 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.17 | ||
| 10 | $ 0.12 | |||
| 25 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.06 | ||
| 20000 | $ 0.06 | |||
| 30000 | $ 0.06 | |||
| 50000 | $ 0.06 | |||
| 70000 | $ 0.06 | |||
| 100000 | $ 0.06 | |||
Description
General part information
CG0402 Series
50 V Varistor 1 Circuit Surface Mount, MLCV 0402 (1005 Metric)
