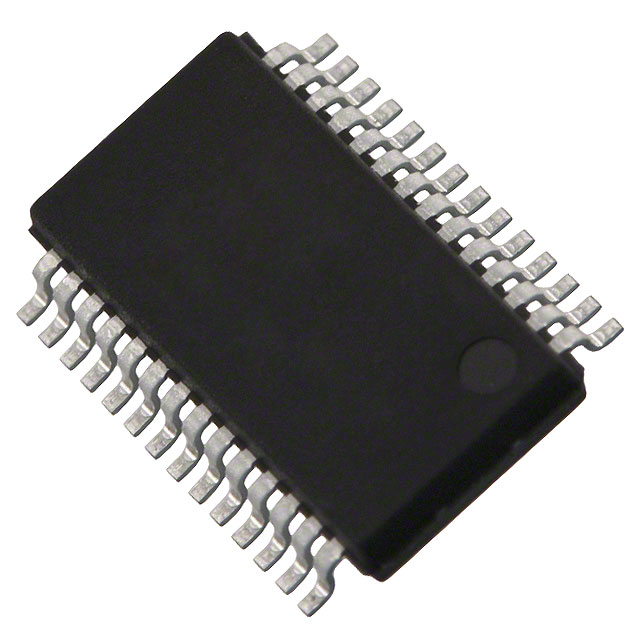

SP3238EEA-L/TR

Active

MaxLinear, Inc.

IC TRANSCEIVER FULL 5/3 28SSOP

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC TRANSCEIVER FULL 5/3 28SSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SP3238EEA-L/TR	SP3238 Series

Data Rate	250 KBd	250 KBd
Duplex	Full	Full
Mounting Type	Surface Mount	Surface Mount
Number of Drivers/Receivers [custom]	5	5
Number of Drivers/Receivers [custom]	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	28-SSOP	28-SSOP, 28-TSSOP
Package / Case	-	0.173 in
Package / Case	-	4.4 mm
Package / Case [custom]	0.209 in	0.209 in
Package / Case [custom]	5.3 mm	5.3 mm
Protocol	RS232	RS232
Receiver Hysteresis	500 mV	500 mV
Supplier Device Package	28-SSOP	28-SSOP, 28-TSSOP
Type	Transceiver	Transceiver
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	3 V	3 V

IC TRANSCEIVER FULL 5/3 28SSOP

Part	Receiver Hysteresis	Protocol	Duplex	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Supplier Device Package	Data Rate	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Package / Case [custom]	Package / Case	Package / Case [custom]	Mounting Type	Package / Case	Package / Case [y]
MaxLinear, Inc. SP3238EEA-L/TR	500 mV	RS232	Full	5.5 V	3 V	85 °C	-40 °C	Transceiver	28-SSOP	250 KBd	5	3	0.209 in	28-SSOP	5.3 mm	Surface Mount
MaxLinear, Inc. SP3238EEY-L	500 mV	RS232	Full	5.5 V	3 V	85 °C	-40 °C	Transceiver	28-TSSOP	250 KBd	5	3		28-TSSOP		Surface Mount	0.173 in	4.4 mm
MaxLinear, Inc. SP3238EEY-L/TR	500 mV	RS232	Full	5.5 V	3 V	85 °C	-40 °C	Transceiver	28-TSSOP	250 KBd	5	3		28-TSSOP		Surface Mount	0.173 in	4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5/3 Transceiver Full RS232 28-SSOP

Technical documentation and resources

No documents available
