2M1-DP1-T1-B3-M2QE

Active

Carling Technologies

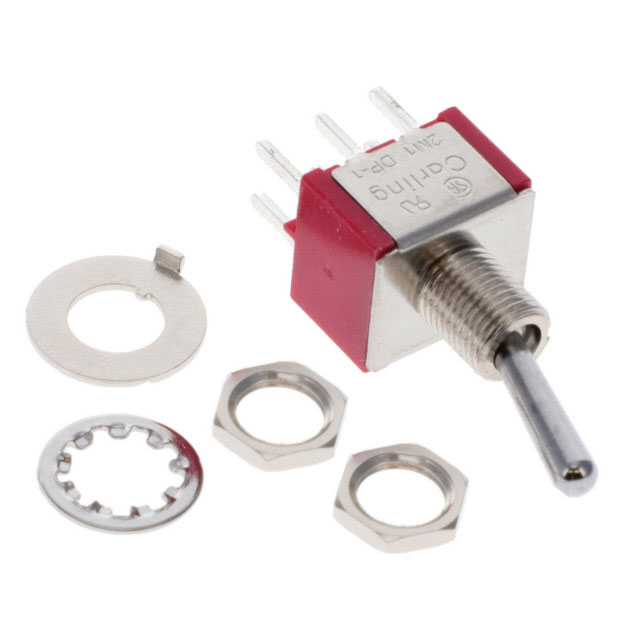

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

2M1-DP1-T1-B3-M2QE

Active

Carling Technologies

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.25
		10	$ 4.53
		25	$ 4.27
		50	$ 4.09
		100	$ 3.91
		250	$ 3.69
		500	$ 3.53
		1000	$ 3.37

Description

General part information

2M1-DP1 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M1-DP1-T1-B3-M2QE	2M1-DP1 Series

Actuator Length	-	5.4 - 21.41 mm
Actuator Length [z]	10.4 mm	10.4 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Anti-Rotation, Paddle, Locking Lever, Flatted
Bushing Thread	1/4-40	Unthreaded, 15/32-32, 1/4-40
Circuit	DPDT	DPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	-	Through Hole, Right Angle, Through Hole, Panel Mount, Right Angle, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 mm
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin, Solder Lug, Quick Connect - 0.062" (1.5mm), Wire Wrap
Voltage Rating - AC	125 V	20 - 125 V
Voltage Rating - DC	28 V	20 - 28 V

2M1-DP1 Series

28V 125V DPDT STRAIGHT PLUGIN TOGGLE SWITCHES ROHS

Part	Illumination	Ingress Protection	Electrical Life	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Bushing Thread	Features	Actuator Length [x]	Actuator Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Length [z]
Carling Technologies 2M1-DP1-T1-B2-M6QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	Unthreaded	Epoxy Sealed Terminals	10.39 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated	Through Hole, Right Angle
Carling Technologies 2M1-DP1-T8-B0-VS5GE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	15/32-32	Epoxy Sealed Terminals	17.5 mm	Anti-Rotation	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		11.91 mm
Carling Technologies 2M1-DP1-T2-B2-M6QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	Unthreaded	Epoxy Sealed Terminals	5.41 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated	Through Hole, Right Angle
Carling Technologies 2M1-DP1-T8-B0-M2QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	15/32-32	Epoxy Sealed Terminals	17.5 mm	Anti-Rotation	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		11.91 mm
Carling Technologies 2M1-DP1-T1-B1-M1GE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	Solder Lug	1/4-40	Epoxy Sealed Terminals	10.39 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		0.25 in
Carling Technologies 2M1-DP1-T4-B2-M2PE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	Unthreaded	Epoxy Sealed Terminals	16.51 mm	Paddle	DPDT	-30 ░C	85 °C	Brass, Chrome Plated	Through Hole
Carling Technologies 2M1-DP1-TA-B9-M1QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	Solder Lug	1/4-40	Epoxy Sealed Terminals		Locking Lever	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		0.25 in
Carling Technologies 2M1-DP1-T1-B9-M1QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	Solder Lug	1/4-40	Epoxy Sealed Terminals		Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		0.25 in	10.4 mm
Carling Technologies 2M1-DP1-T1-B7-M7RE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	20 V	20 V	0.4 VA	PC Pin	1/4-40	Epoxy Sealed Terminals	10.39 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated	Panel Mount, Right Angle, Vertical	0.25 in
Carling Technologies 2M1-DP1-T1-B3-M3QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	Quick Connect - 0.062" (1.5mm)	1/4-40	Epoxy Sealed Terminals	10.39 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		0.25 in
