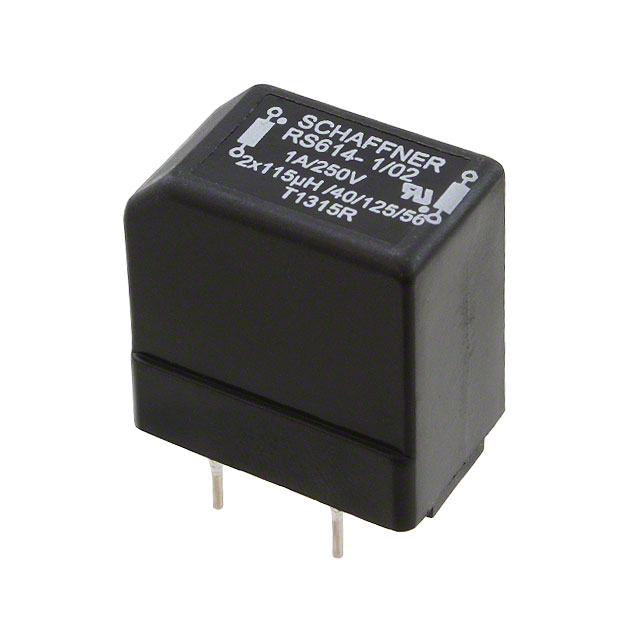

RS614-1-02
ObsoleteTE Connectivity Raychem Cable Protection
CMC 120UH 1A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RS614-1-02
ObsoleteTE Connectivity Raychem Cable Protection
CMC 120UH 1A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RS614-1-02 |
|---|---|
| Approval Agency | VDE, UR |
| Current Rating (Max) | 1 A |
| DC Resistance (DCR) (Max) | 200 mOhm |
| Height (Max) [Max] | 0.984 in |
| Height (Max) [Max] | 25 mm |
| Inductance @ Frequency | 120 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 0.906 in |
| Size / Dimension [x] | 23 mm |
| Size / Dimension [y] | 0.61 in |
| Size / Dimension [y] | 15.5 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.20 | |
| 10 | $ 3.27 | |||
| 25 | $ 2.95 | |||
| 50 | $ 2.73 | |||
Description
General part information
RS614 Series
120 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 1A (Typ) DCR 200mOhm (Typ)
